SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice & Water Cavity & Elec Brkt Assy


07 - Ice Bucket Auger And Ice Maker Parts


08 - Ice Maker/control Assy


09 - Machine Compartment


10 - Ref Door


11 - Ref/fz Shelves, Lights, And Hinges

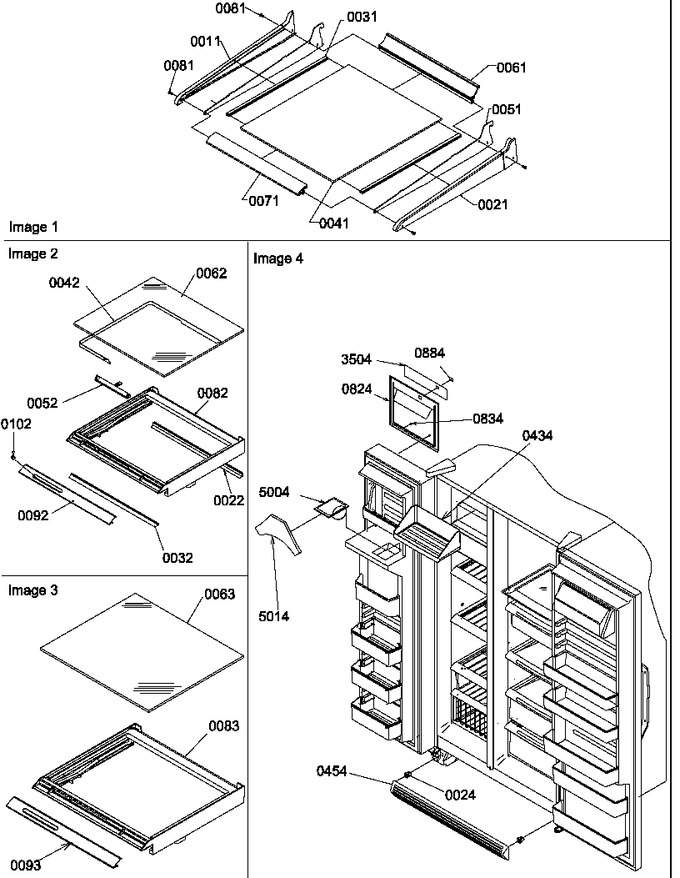

12 - Shelving, Crisper Assy & Toe Grille


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10436603		Cover, Glass Shelf Rail		Appelez-nous	-
21	10436604		Cover, Glass Shelf Rail		Appelez-nous	-
22	D7718406		Seal, Meat Pan		Appelez-nous	-
24	M0117302		Clip, Grille		Appelez-nous	-
31	10562504		Ext, Gl Shelf Side		Appelez-nous	-
32	10523401		Seal, Crisper Front		Appelez-nous	-
41	10370095		Glass-shelf		Appelez-nous	-
42	10882901		Band, Crisper		Appelez-nous	-
51	10681402		Rail, Pntd		Appelez-nous	-
52	D7860603		Slide		Appelez-nous	-
61	10436904		Extr-gl Shlf Rear		Appelez-nous	-
62	10370027		Glass Shelf		Appelez-nous	-
63	10370030		Glass Shelf		Appelez-nous	-
71	10436812		Extr-gl Shlf Front		Appelez-nous	-
81	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
82	10469609		Frame, Crisper		Appelez-nous	-
83	10469608		Frame, Crisper		Appelez-nous	-
92	10873914		Trim-crisp Fr		Appelez-nous	-
93	10873909		Trim-crisp Front		Appelez-nous	-
102	10038402		Knob - Crisper		Appelez-nous	-
434	10870801		Shelf, Ice Cream		Appelez-nous	-
454	12321810		Kit, Toe Grille (alm)		Appelez-nous	-
824	10986106		Facade, Disp(almond)		Appelez-nous	-
834	M0219640		Screw		Appelez-nous	-
884	12043801		Cap-silver Switch		Appelez-nous	-
3504	10984605		Insert, L Facade		Appelez-nous	-
5004	10504101		Chute, Ice		Appelez-nous	-
5014	12044501		Gasket-ice Chute		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
