Diagram # Part Number Description Series Availability Ships Price Add to Cart
14 10881305L Ass`y, Ref Dr Foam Appelez-nous -
24 10861502 Liner-ref Dr Appelez-nous -
33 R0181181 Closure, Door (blk)   (Replaces: 12113204) In-Stock Immediately $ 7.55

34 B0523590 Insul., Batt Appelez-nous -
43 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

44 10883901 Bucket-beverage Appelez-nous -
54 10520405 Shelf, Chiller Special Order $ 31.15

64 10521812 Shelf-ref Door Appelez-nous -
73 10961001 Bushing, Door (wht) Appelez-nous -
84 10359708 Gasket, Door (w Ref) Appelez-nous -
114 10883803 Shelf, Dairy Appelez-nous -
124 10519004 Frame-chiller Appelez-nous -
131 M0219730 Screw Special Order $ 7.65

134 12102905 Track, Dairy Door Appelez-nous -
144 12102906 Track, Dairy Door Appelez-nous -
164 M0226705 Screw, Shoulder Appelez-nous -
174 10519208 Door, Chiller Appelez-nous -
184 10162101 Glide-igloo Door Appelez-nous -
194 12033201 Tunnel-air Appelez-nous -
204 10165101 Clip-tubular Appelez-nous -
304 M0500706 Seal-o Ring Appelez-nous -
331 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

354 M0219730 Screw Special Order $ 7.65

394 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

414 12103001 Door-dairy Appelez-nous -
454 10202001 Clip, Retainer Appelez-nous -
484 C8972406 Stop, L Door Appelez-nous -
1692 10810510 Trim, Bot Ref Dr L Appelez-nous -
1702 12139305 Handle, Door (almond) Appelez-nous -
1712 10810310 Trim-l Top Ref Dr Appelez-nous -
1732 10810402 Trim, L Ctr Door Appelez-nous -
1792 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

1795 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

1812 10852214 Retainer-ref Trim Appelez-nous -
1822 M0216517 Screw Appelez-nous -
1825 M0216517 Screw Appelez-nous -
4002 10953113 Insert, Door Trim Appelez-nous -
4012 10953114 Insert, Trim (almond) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

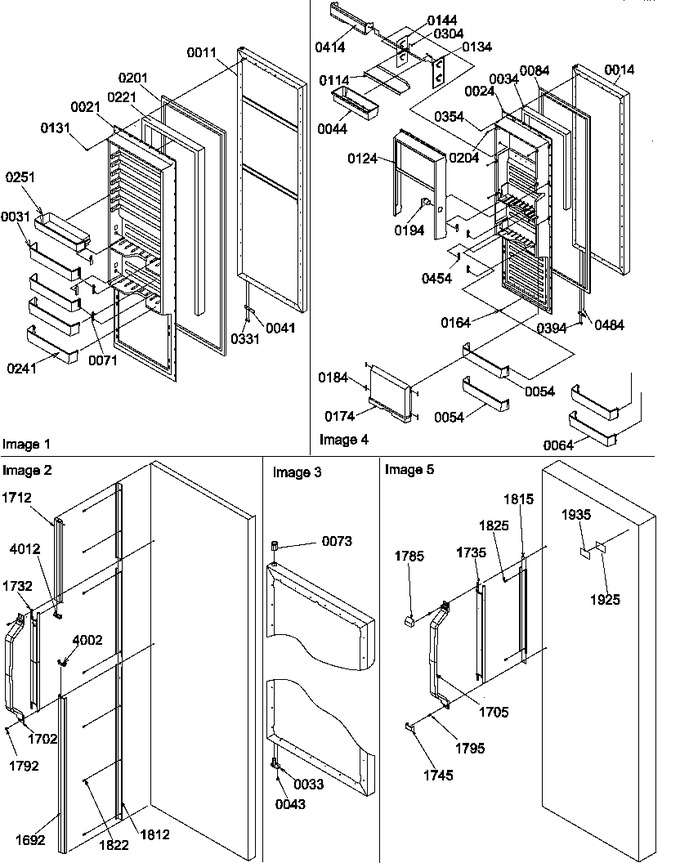

Diagram for SQD25VL (BOM: P1190430W L)
