01 - Cabinet, Literature
02 - Freezer Liner
03 - Freezer Door
04 - Refrigerator Liner
05 - Refrigerator Door
06 - Unit
07 - Shelf, Optional
SELECT A DIAGRAM
New Model Search:

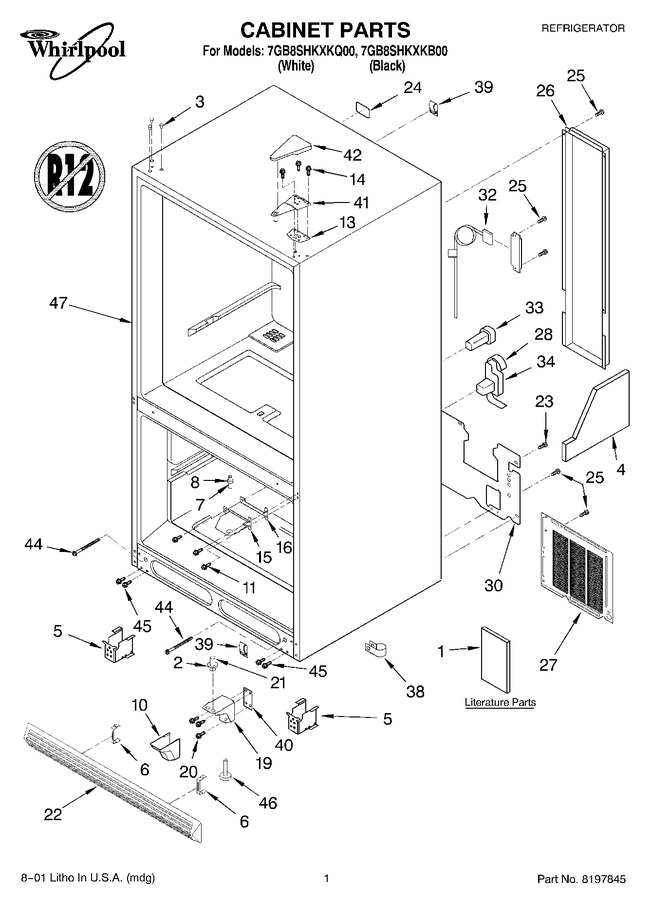

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2221831 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT2221871 | Literature Parts (energy Label) |
|
- | |||||
| 2 | 4344201 | Shim, Bottom Hinge (black) |
|
- | |||||
| 2 | 4344200 | Shim, Bottom Hinge (white) |
|
- | |||||
| 3 | WP2189009 | Plug, Button (3) (black) (Replaces: 4344208) |
|
$ 7.61 | |||||
| 3 | WP2189000 | Plug, Button (3) (white) (Replaces: 4344209) |
|
Immediately | $ 7.77 | ||||
| 4 | 8170576 | Insulation, Foot (right Side) |
|
- | |||||
| 4 | 8170534 | Insulation, Foot (left Side) |
|
- | |||||
| 5 | 8170506 | Roller, Front Assy. |
|
- | |||||
| 6 | 4344155 | Clip, Grille |
|
- | |||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 4344177) |
|
$ 8.68 | |||||
| 8 | WPM0274062 | Shim (black) (Replaces: 4344188) |
|
Immediately | $ 24.43 | ||||
| 8 | WPM0274057 | Shim (white) (Replaces: 4344187) |
|
Immediately | $ 8.40 | ||||
| 10 | 8170572 | Hinge Cover, Bottom (black) |
|
- | |||||
| 10 | 8170573 | Hinge Cover, Bottom (white) |
|
- | |||||
| 11 | W11573362 | Screw (Replaces: 4344186) |
|
$ 14.72 | |||||
| 13 | 8170540 | Shim, Hinge Top |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: 4344198) |
|
Immediately | $ 8.43 | ||||
| 15 | 8170535 | Hinge, Center |
|
- | |||||
| 16 | 8170714 | Shim, Center Hinge (black) |
|
- | |||||
| 16 | 4344427 | Shim, Center Hinge (grey) |
|
- | |||||
| 19 | 8170575 | Hinge Bottom (white) |
|
- | |||||
| 19 | 8170574 | Hinge Bottom (black) |
|
- | |||||
| 20 | WP67006715 | Screw (Replaces: 8170455) |
|
$ 7.55 | |||||
| 21 | 67007018 | Pin, Bottom Hinge (Replaces: 4344178) |
|
Immediately | $ 8.62 | ||||
| 22 | 8170529 | Grille (black) |
|
- | |||||
| 22 | 8170530 | Grille (white) |
|
- | |||||
| 23 | 4344267 | Screw |
|
- | |||||
| 24 | 4344264 | Plug, I/m |
|
- | |||||
| 25 | 4343759 | Screw |
|
- | |||||
| 26 | 4344257 | Wire Cover |
|
- | |||||
| 27 | 8170375 | Back Cover |
|
- | |||||
| 28 | 8170702 | Harness, Control |
|
- | |||||
| 30 | 8170718 | Cover, Unit |
|
- | |||||
| 32 | 4344263 | Power Cord |
|
- | |||||
| 33 | 8170566 | Grommet |
|
- | |||||
| 34 | 4344260 | Plug |
|
- | |||||
| 38 | 8170435 | Clip |
|
- | |||||
| 39 | WPM0104106 | Clip (Replaces: 4344265) |
|
$ 8.17 | |||||
| 40 | 8170663 | Shim, Hinge (black) |
|
- | |||||
| 40 | 8170662 | Shim, Hinge (white) |
|
- | |||||
| 41 | 8170539 | Hinge Top |
|
- | |||||
| 42 | 8170711 | Hinge Cover (black) |
|
- | |||||
| 42 | 8170712 | Hinge Cover (white) |
|
- | |||||
| 44 | 8170380 | Screw |
|
- | |||||
| 45 | W11573574 | Screw (Replaces: 4344293) |
|
Immediately | $ 14.72 | ||||
| 46 | W11177593 | Foot Break (Replaces: 4344298) |
|
$ 12.18 |
