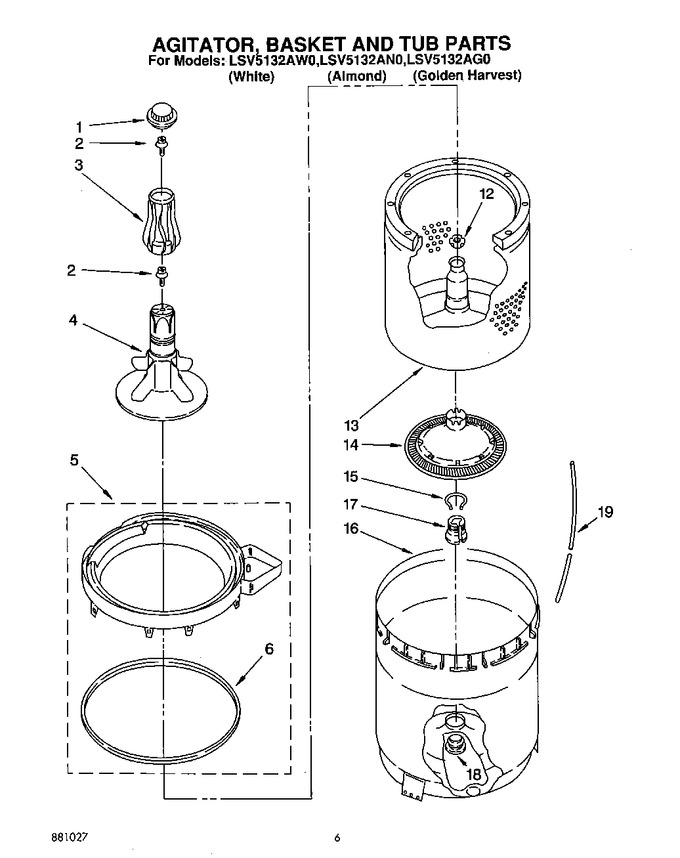

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 9.00 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | 64210 | Filter, Barrel |
|
$ 84.05 | |||||
| 4 | 64214 | Agitator |
|
$ 68.42 | |||||
| 5 | W10880720 | Tub Ring & Gasket (Replaces: 63851) |
|
Immediately | $ 222.23 | ||||
| 6 | WP3976308 | Gasket, Tub Ring (Replaces: 63852) |
|
Immediately | $ 28.25 | ||||
| 7 | WPW10109200 | Screw (2) (Replaces: 63027) |
|
Immediately | $ 8.00 | ||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.89 | ||||
| 13 | W10389328 | Basket & Balance Ring (Replaces: 64217) |
|
$ 404.58 | |||||
| 14 | 285868 | Filter, Plate (includes Illus. 15) (Replaces: 62941) |
|
Immediately | $ 21.68 | ||||
| 15 | 62942 | Lock, Filter |
|
$ 7.59 | |||||
| 16 | 63849 | Tub |
|
$ 291.70 | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.18 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 |
