| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

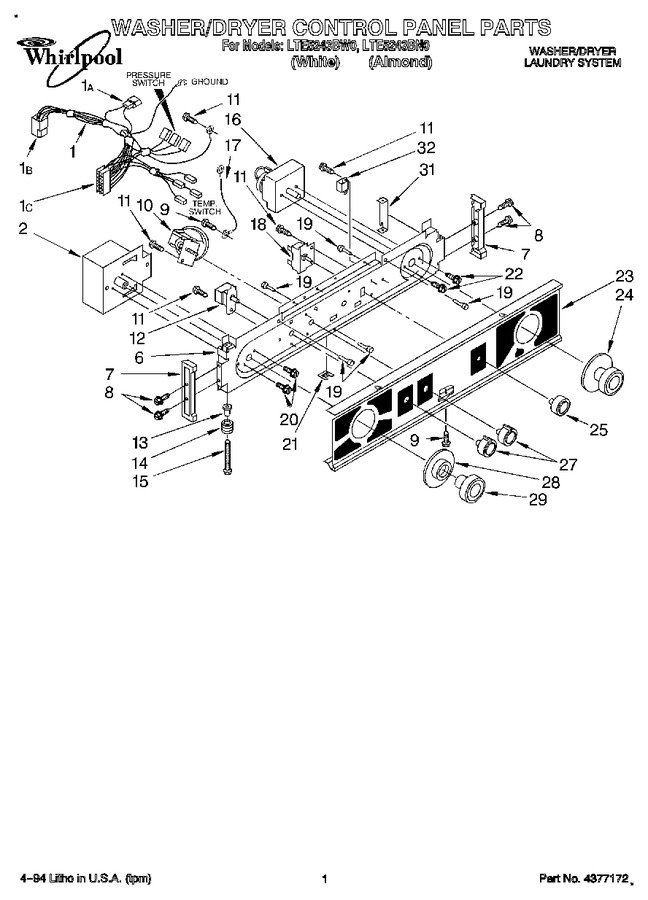

| 1 | 3398879 | Harness, Console Wiring (automatic) (includes Illus. 1a, 1b & 1c) |
|
- | |||||
| 2 | WP3946432 | Timer, Control (60 Hz.) (automatic Washer) (Replaces: 3347890) |
|
$ 492.56 | |||||
| 6 | 694338 | Bracket, Control |
|
- | |||||
| 7 | 692993 | End Cap, Console (l.h. & R.h.) |
|
$ 34.71 | |||||
| 8 | 348689 | Screw, End Cap Mounting (4) (6-32 X 3/4) |
|
$ 78.07 | |||||
| 9 | WP694091 | Screw, Mounting (2) No.8 Posidrive (Replaces: 694091) |
|
$ 7.55 | |||||
| 10 | WP3362987 | Switch, Water Level (Replaces: 3362987) |
|
Immediately | $ 187.85 | ||||
| 11 | WP3390631 | Screw (Replaces: 339554) |
|
$ 8.25 | |||||
| 12 | 3363042 | Switch, Water Temperature |
|
- | |||||
| 13 | 693711 | Sleeve, Console Lock Screw (2) |
|
$ 8.58 | |||||
| 14 | WP693151 | Spring, Console Lock (2) (Replaces: 693151) |
|
$ 7.84 | |||||
| 15 | 693710 | Screw, Console Lock (2) |
|
- | |||||
| 16 | WP3388255 | Timer, Control (60 Hz.) (dryer) (timer Motor Not Serviceable) (Replaces: 3388255) |
|
$ 381.05 | |||||
| 17 | 693175 | Strut, Console |
|
- | |||||
| 18 | 660936 | Switch, Push-to-start |
|
- | |||||
| 19 | 693152 | Bumper, Console (5) |
|
$ 11.51 | |||||
| 20 | WP356418 | Screw, Timer Mounting (2) (Replaces: 96435) |
|
$ 9.26 | |||||
| 21 | 694037 | Clip, Console |
|
$ 86.50 | |||||
| 22 | WP3400882 | Screw, Dryer Timer Mounting (2) (8-32 X 3/16) (Replaces: 3400801) |
|
Immediately | $ 7.55 | ||||
| 23 | 3398821 | Panel, Control (white) |
|
- | |||||
| 23 | 3398822 | Panel, Control (almond) |
|
- | |||||
| 24 | WP3957750 | Knob, Timer (dryer) (almond) (Replaces: 3396151) |
|
Immediately | $ 68.09 | ||||
| 24 | WP3957750 | Knob, Timer (dryer) (white) (Replaces: 3396150) |
|
Immediately | $ 68.09 | ||||
| 25 | WP3957800 | Knob, Push To Start (white) (Replaces: 3396161) |
|
$ 52.92 | |||||
| 25 | WP3957800 | Knob, Push-to-start (almond) (Replaces: 3396164) |
|
$ 52.92 | |||||
| 27 | 3950760 | Knob, Control (2) (almond) (Replaces: 3358436) |
|
- | |||||
| 27 | WP3957796 | Knob, Control (2) (white) (Replaces: 3358435) |
|
Immediately | $ 57.57 | ||||
| 28 | 3398326 | Dial, Timer (washer) (almond) |
|
- | |||||
| 28 | 3398325 | Dial, Timer (washer) (white) |
|
- | |||||
| 29 | WP3364293 | Knob, Timer (washer) (white) (Replaces: 3358417) |
|
Immediately | $ 62.42 | ||||
| 29 | WP3364293 | Knob, Timer (washer) (almond) (Replaces: 3358420) |
|
Immediately | $ 62.42 | ||||
| 31 | WP692983 | Lock, Console (2) (Replaces: 692983) |
|
$ 89.33 | |||||
| 32 | WP694419 | Buzzer (Replaces: 694419) |
|
$ 134.05 | |||||
| 1a | 3350130 | Plug, Terminal (2-way) (connects With Main Dryer Harness) |
|
$ 13.67 | |||||
| 1b | 696073 | Receptacle, Connector (connects With Lower Automatic Harness) |
|
- | |||||
| 1c | W10876590 | Disconnect Block (connects With Automatic Timer) (Replaces: 352089) |
|
$ 13.40 |
