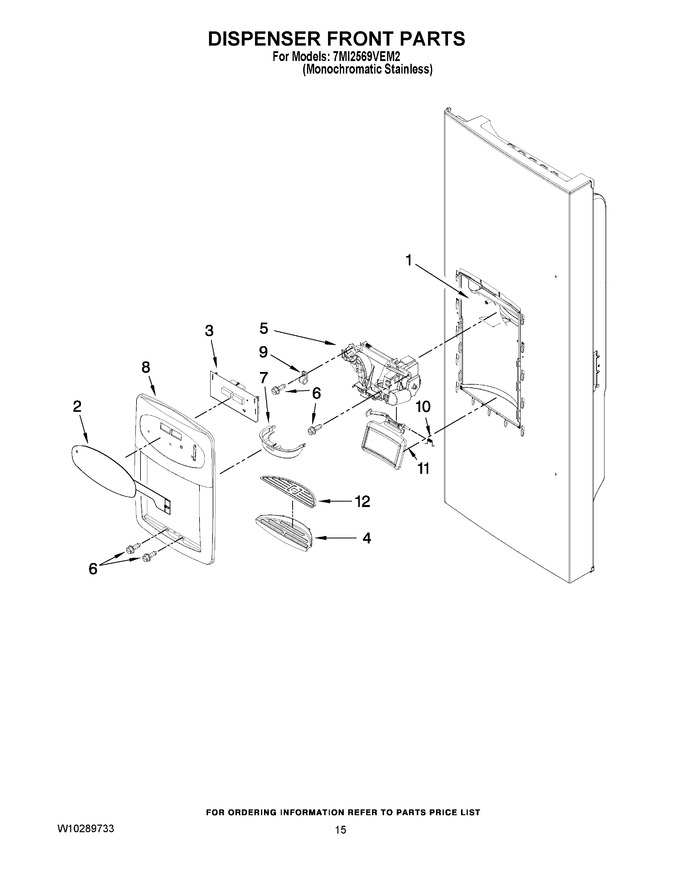

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10740217 | Keyboard (stainless) (Replaces: W10164471) |
|
Immediately | $ 236.00 | ||||
| 3 | 67006294 | Board, L.v. (Replaces: 12939601) |
|
$ 270.03 | |||||
| 4 | W10185235 | Sump, Dispenser (midnight Grey) |
|
$ 28.47 | |||||
| 5 | WP13005705 | Chute, Ext/yoke (includes Switch) (midnight Grey) (Replaces: 13005705) |
|
Immediately | $ 329.03 | ||||
| 6 | 67006425 | Screw (3) (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | 67006295 | Ring, Target (Replaces: 12958301) |
|
$ 55.57 | |||||
| 8 | WPW10310688 | Facade, Dispenser (stainless) (Replaces: W10142273) |
|
$ 232.13 | |||||
| 9 | M0108106 | Clamp, Tube |
|
$ 69.95 | |||||
| 10 | WPW10185233 | Yoke Pad Assy. (midnight Grey) (Replaces: W10185233) |
|
$ 85.43 | |||||
| 11 | WP12565502 | Spring (Replaces: 12565502) |
|
$ 8.43 | |||||
| 12 | W10142275 | Grille, Sump |
|
$ 29.42 |
