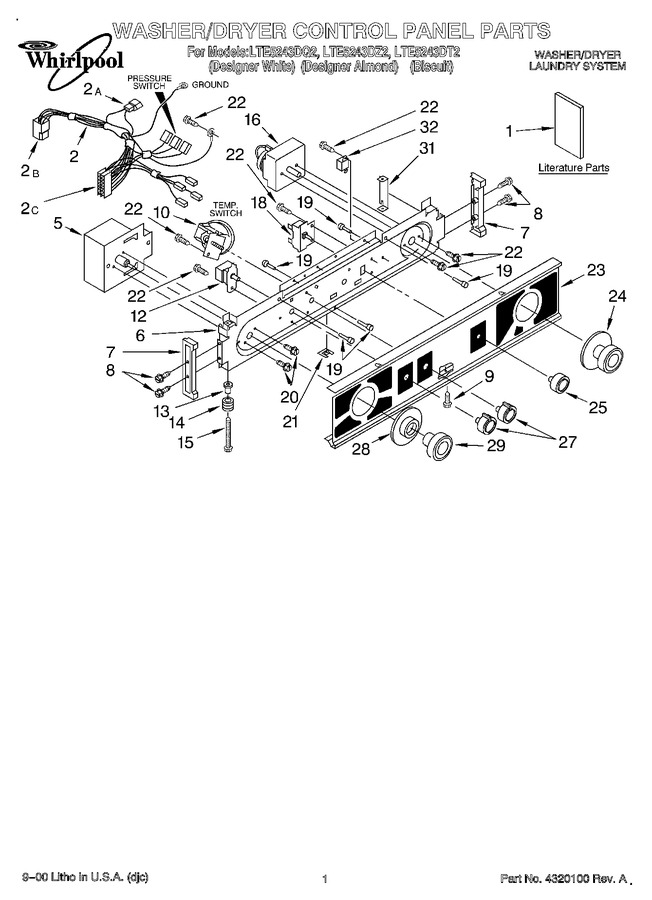

01 - Washer/dryer Control Panel, Literat


02 - Dryer Front Panel And Door


03 - Dryer Cabinet And Motor


04 - Dryer Bulkhead


05 - Dryer Support And Washer


06 - Washer Top And Lid


07 - Washer Cabinet


08 - Brake, Clutch, Gearcase, Motor And Pump


09 - Machine Base


10 - Tub And Basket


11 - Washer Water System


12 - Gearcase


13 - Brake And Drive Tube


14 - Sales Accessory


15 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3952874		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3405970		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT3401098		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT3954147		Literature Parts (energy Guide)		Appelez-nous	-
2	WP3406288		Harness, Console Wiring (automatic) (includes Illus. 2a, 2b & 2c)   (Replaces: 3406288)				$ 231.61
5	WP3952499		Timer, Control (60 Hz.) (automatic Washer)   (Replaces: 3952499)			Immediately	$ 442.89
6	8054285		Bracket, Control		Appelez-nous	-
7	692993		End Cap, Console (l.h. & R.h.)				$ 34.71
8	348689		Screw, End Cap Mounting (4) (8-18 X 3/4)				$ 78.07
9	WP694091		Screw, Mounting (2) (8-18 X 3/8)   (Replaces: 694091)				$ 7.55
10	WP3362987		Switch, Water Level   (Replaces: 3362987)			Immediately	$ 187.85
12	WP8054142		Switch, Water Temperature   (Replaces: 8054142)			Immediately	$ 140.00
13	693711		Sleeve, Console Lock Screw (2)				$ 8.58
14	WP693151		Spring, Console Lock (2)   (Replaces: 693151)				$ 7.84
15	WP3400860		Screw, Console Lock (2)   (Replaces: 3400860)				$ 11.53
16	WP3406720		Timer, Control (60 Hz.) (dryer) (timer Motor Not Serviceable)   (Replaces: 3406720)			Immediately	$ 329.94
18	WP3395382		Switch, Push-to-start   (Replaces: 3395382)			Immediately	$ 50.15
19	693152		Bumper, Console (5)				$ 11.51
20	WP356418		Screw, Timer Mounting (2)   (Replaces: 96435)				$ 9.26
21	694037		Clip, Console				$ 86.50
22	WPW10139210		Screw, Dryer Timer Mounting (2) (8-18 X 5/16)   (Replaces: 3390646)				$ 8.03
23	3977194		Panel, Control (white)				$ 250.35
23	3977195		Panel, Control (biscuit)		Appelez-nous	-
23	3977193		Panel, Control (almond)		Appelez-nous	-
24	3957753		Knob, Timer (dryer) (almond)   (Replaces: 3406144)		Appelez-nous	-
24	3957753		Knob, Timer (dryer) (biscuit)   (Replaces: 3978872)		Appelez-nous	-
24	WP3957752		Knob, Timer (dryer) (white)   (Replaces: 3406143)				$ 56.66
25	WP3957800		Knob, Push-to-start (white)   (Replaces: 3406133)				$ 52.92
25	3978871		Knob, Push-to-start (biscuit)		Appelez-nous	-
25	WP3957800		Knob, Push-to-start (almond)   (Replaces: 3406134)				$ 52.92
27	3978873		Knob, Control (2) (biscuit)				$ 10.75
27	WP3957796		Knob, Control (2) (white)   (Replaces: 3950759)			Immediately	$ 57.57
27	3950760		Knob, Control (2) (almond)		Appelez-nous	-
28	3950763		Dial, Timer (washer) (almond)		Appelez-nous	-
28	WP3957841		Dial, Timer (washer) (white)   (Replaces: 3950762)				$ 47.62
28	3978870		Dial, Timer (washer) (biscuit)		Appelez-nous	-
29	WP3957822		Knob, Timer (washer) (biscuit)   (Replaces: 3978869)			Immediately	$ 56.08
29	WP3957823		Knob, Timer (washer) (almond)   (Replaces: 3951027)				$ 54.21
29	W10807860		Knob, Timer (washer) (white)   (Replaces: 3951026)			Immediately	$ 52.47
31	WP692983		Lock, Console (2)   (Replaces: 692983)				$ 89.33
32	WP694419		Buzzer   (Replaces: 694419)				$ 134.05
2A	3350130		Plug, Terminal (2-way) (connects With Main Dryer Harness)				$ 13.67
2B	696073		Receptacle, Connector (connects With Lower Automatic Harness)		Appelez-nous	-
2C	3948614		Disconnect Block (connects With Automatic Timer)				$ 20.08
