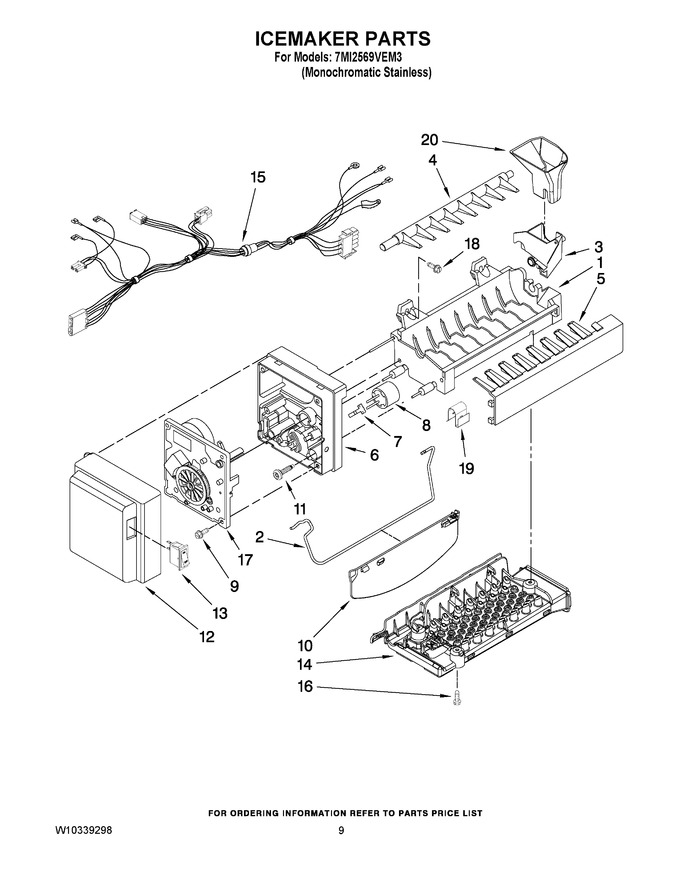

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10190929 | Mold & Heater Assembly (alsoorder 542638 Grease) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 2 | WPW10175514 | Arm, Shutoff (Replaces: W10175514) |
|
Immediately | $ 95.82 | ||||
| 3 | W10122561 | Cup, Fill (Replaces: 628515) |
|
$ 29.16 | |||||
| 4 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 5 | WP2182124 | Ice Stripper (Replaces: 2182124) |
|
$ 90.35 | |||||
| 6 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 109.80 | |||||
| 7 | WP2315522 | Retainer,thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 8 | WP627985 | Thermostat (also Order 542369 Cement) (Replaces: 628397) |
|
$ 114.64 | |||||
| 9 | WP681249 | Screw (3) (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 10 | WPW10121440 | Extension, Shutoff Arm (Replaces: W10121440) |
|
$ 93.87 | |||||
| 11 | 8533917 | Screw (2) |
|
$ 14.04 | |||||
| 12 | WPW10121444 | Cover (Replaces: W10121444) |
|
$ 96.55 | |||||
| 13 | WP2313326 | Switch, On-off (Replaces: 2313326) |
|
Immediately | $ 19.37 | ||||
| 14 | WPW10121269 | Impinger Assy. (Replaces: W10121269) |
|
$ 100.37 | |||||
| 15 | W11256689 | Harness, Icemaker (Replaces: W10117806) |
|
$ 136.12 | |||||
| 16 | 67006425 | Screw, Impinger (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 17 | 8201515 | Module Assembly (includes Motor W10122551) (Replaces: W10223929) |
|
Immediately | $ 141.64 | ||||
| 18 | WP681249 | Screw (3) (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 19 | WP628379 | Clip (Replaces: 628379) |
|
$ 11.10 | |||||
| 20 | WPW10121434 | Insert, Fill Cup (Replaces: W10121434) |
|
$ 30.96 | |||||
| 100 | WPW10190981 | Icemaker Assembly (Replaces: W10190981) |
|
Immediately | $ 277.25 | ||||
| NI | 10244904SP | Coupling |
|
- |
