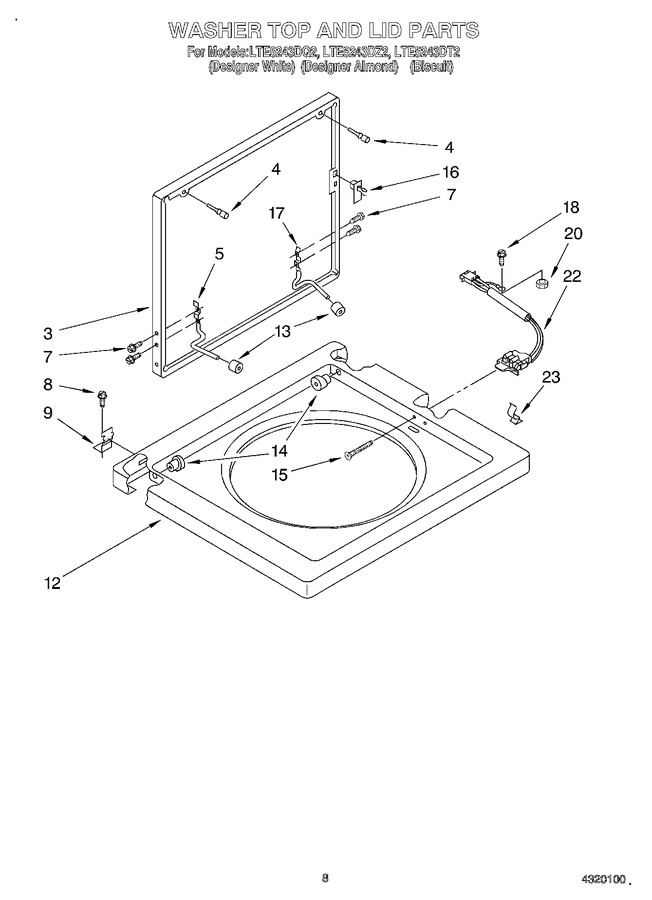

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 3398844 | Lid (almond) |
|
- | |||||
| 3 | 3398849 | Lid (biscuit) (Replaces: 3398847) |
|
$ 120.90 | |||||
| 3 | WP3398848 | Lid (white) (Replaces: 3398843) |
|
$ 361.54 | |||||
| 4 | 80011 | Bumper, Lid (2) (Replaces: 384475) |
|
Immediately | $ 10.48 | ||||
| 5 | 384458 | Hinge, Lid (l.h.) |
|
$ 88.80 | |||||
| 7 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 3351355) |
|
Immediately | $ 7.55 | ||||
| 8 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 9 | WP692985 | Clip, Spring (2) (top To Cabinet) (Replaces: 692985) |
|
$ 8.16 | |||||
| 12 | WP384693 | Top (white) (Replaces: 384693) |
|
$ 320.43 | |||||
| 12 | 3978593 | Top (biscuit) |
|
- | |||||
| 12 | 384694 | Top (almond) |
|
- | |||||
| 13 | 19119 | Bumper, Lid Hinge (2) |
|
$ 5.75 | |||||
| 14 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
$ 8.01 | |||||
| 15 | WP3356311 | Screw & Washer, Lid Switch Shield (2) (Replaces: 3356311) |
|
$ 8.23 | |||||
| 16 | WP358684 | Strike, Lid Switch (Replaces: 358684) |
|
Immediately | $ 8.05 | ||||
| 17 | 384459 | Hinge, Lid (r.h.) |
|
$ 89.40 | |||||
| 18 | WP308544 | Screw, Ground (10-24 X 1/2) (Replaces: 3400030) |
|
Immediately | $ 8.30 | ||||
| 20 | W10080180 | Nut, Ground Screw (10-24) (Replaces: 3400901) |
|
$ 14.15 | |||||
| 22 | WP3355806 | Switch, Lid (Replaces: 3355806) |
|
Immediately | $ 53.36 | ||||
| 23 | WP90016 | Clip, Harness Routing (Replaces: 90016) |
|
$ 11.89 |
