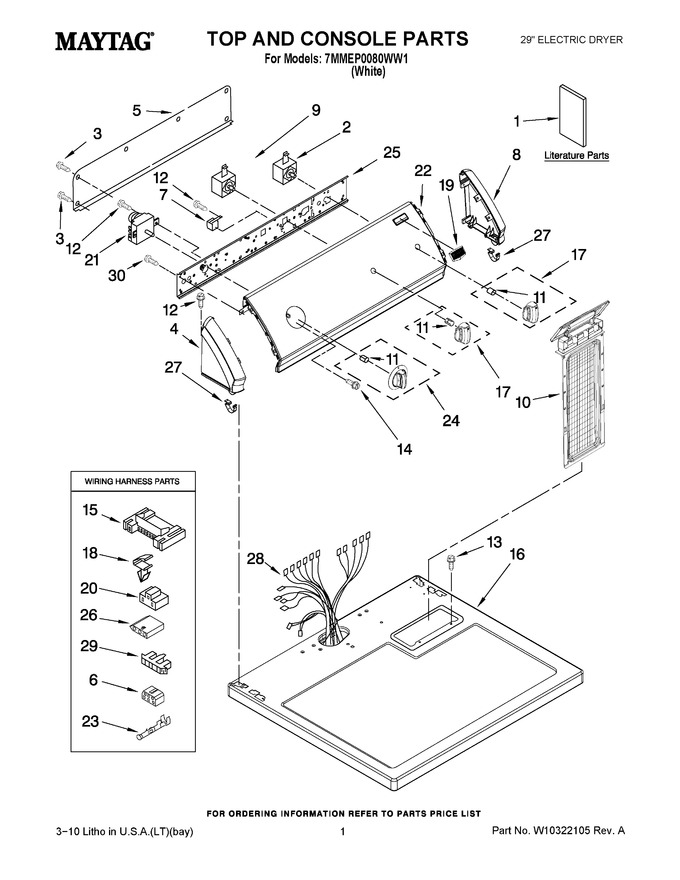

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10305898 | Wiring Diagram |
|
- | |||||
| 1 | W10276858 | Sheet, Cycle Feature |
|
- | |||||
| 1 | W10305871 | Instructions, Installation |
|
- | |||||
| 1 | W10275864 | Use & Care Guide |
|
- | |||||
| 2 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 92.88 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | WP8559502 | Cap, End (l.h.) (Replaces: 8559502) |
|
$ 69.51 | |||||
| 5 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 128.87 | |||||
| 6 | 3347243 | Connector 6-circuit |
|
- | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 8 | WP8559501 | Cap, End (r.h.) (Replaces: 8559501) |
|
$ 69.30 | |||||
| 9 | WP3399640 | Switch, Temperature (Replaces: 3399640) |
|
$ 129.76 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 52.03 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.22 | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 51.86 | ||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 332.62 | ||||
| 17 | W10816321 | Knob, Control (2) (Replaces: 3956788) |
|
$ 54.35 | |||||
| 18 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 19 | W10153170 | Badge |
|
$ 28.25 | |||||
| 20 | 3401144 | Connector (pts) Relay |
|
$ 12.20 | |||||
| 21 | WPW10185982 | Timer, 60 Hz. (Replaces: W10185982) |
|
Immediately | $ 150.34 | ||||
| 22 | W10270437 | Panel, Control |
|
- | |||||
| 23 | WP94614 | Terminal (Replaces: 94614) |
|
$ 7.67 | |||||
| 24 | 8571409 | Timer Knob Assembly |
|
$ 36.91 | |||||
| 25 | 8559772 | Bracket, Control |
|
- | |||||
| 26 | 3936144 | Connector |
|
$ 20.21 | |||||
| 27 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 28 | W10300886 | Harness, Wiring |
|
- | |||||
| 29 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 30 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.82 |
