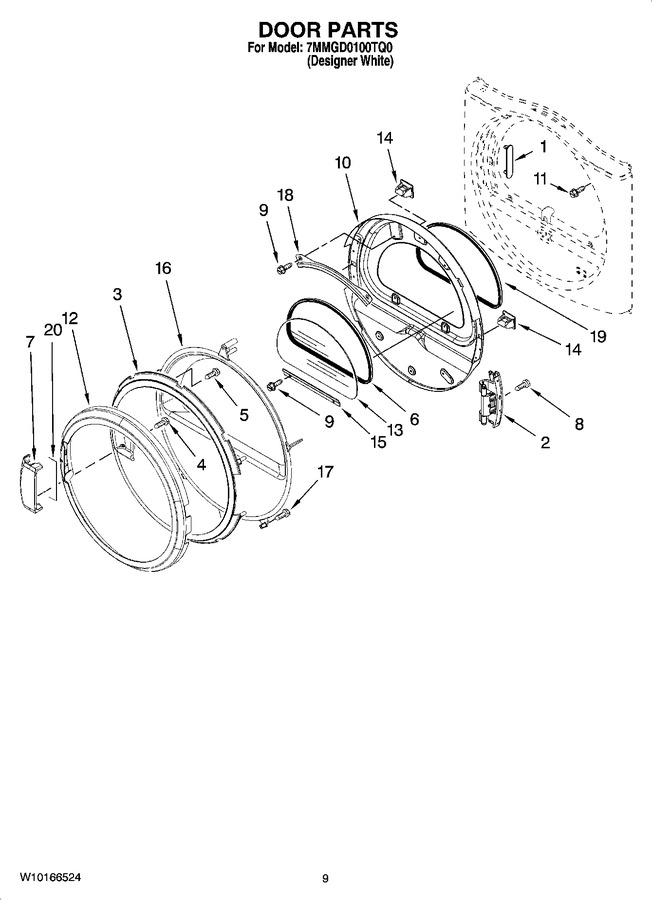

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8565119		Plug Strip (inner Door)				$ 98.32
2	WPW10304672		Door, Hinge Assembly   (Replaces: 8578887)			Immediately	$ 232.48
3	W10119053		Assembly, Door Intermediate				$ 201.38
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.55
5	3400618		Screw, 6-32 X 3/8				$ 67.94
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
7	W10112977		Handle, Door (includes Illus. 20.)   (Replaces: W10117478)				$ 98.53
8	W10017850		Screw, 10-24 X 3/64		Appelez-nous	-
9	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
10	WPW10164062		Door Assembly (inner) (includes Illus. 1 & 14 )   (Replaces: 8578933)				$ 354.07
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 8.48
12	W10155392		Door, Outer Ring				$ 216.38
13	WPW10286878		Window   (Replaces: 8565117)				$ 274.76
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
15	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 18.01
16	WP8580059		Door, Intermediate   (Replaces: 8580059)				$ 107.50
17	WP8534022		Screw   (Replaces: 8534022)				$ 8.37
18	8519356		Retainer (upper)		Appelez-nous	-
20	WPW10112927		Pad, Door Handle   (Replaces: W10112927)				$ 8.31
NI	8212450A		Dry Rack   (Replaces: 8563738)			Immediately	$ 88.19
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	8529894		Hold Down Kit		Appelez-nous	-
NI	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 12.34
NI	4392067		Kit, Dryer Repair   (Replaces: 80047)			Immediately	$ 62.25
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30

    View Diagram in Separate Window       Print Part List
