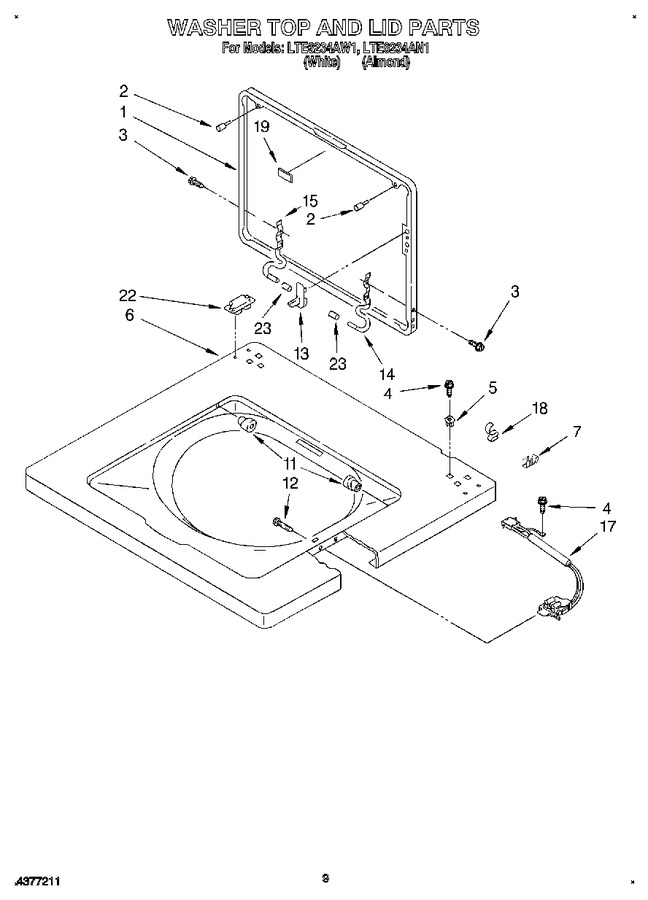

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3351653		Lid, Top (almond)		Appelez-nous	-
1	3351652		Lid, Top (white)		Appelez-nous	-
2	WP9724509		Bumper, Lid (2)   (Replaces: 93770)			Immediately	$ 8.33
3	WPW10119828		Screw And Washer   (Replaces: 3351355)			Immediately	$ 7.55
4	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
5	WP692400		Nut, Push-in (2)   (Replaces: 692400)			Immediately	$ 8.02
6	3349798		Top, Console (white)		Appelez-nous	-
6	3349799		Top, Console (almond)		Appelez-nous	-
7	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
11	WP21258		Hinge, Bearing (2)   (Replaces: 21258)				$ 8.01
12	WP3356311		Screw And Washer   (Replaces: 3356311)				$ 8.23
13	WP358684		Strike, Lid   (Replaces: 358684)			Immediately	$ 8.05
14	WP54583		Hinge, R.h.   (Replaces: 54583)				$ 31.04
15	WP54584		Hinge, L.h.   (Replaces: 54584)				$ 35.50
17	WP3355458		Switch, Lid   (Replaces: 3355458)			Immediately	$ 77.44
18	WP90016		Clip, Wire (4)   (Replaces: 90016)				$ 11.89
19	3390193		Strike, Magnetic		Appelez-nous	-
22	W11116924		Locator, Top   (Replaces: 3390481)				$ 22.75
23	19119		Bumper, Lid Hinge				$ 5.75
