SELECT A DIAGRAM

01 - Washer/dryer Control Panel Parts


02 - Dryer Front Panel And Door Parts


03 - Dryer Cabinet And Motor Parts


04 - Dryer Bulkhead Parts

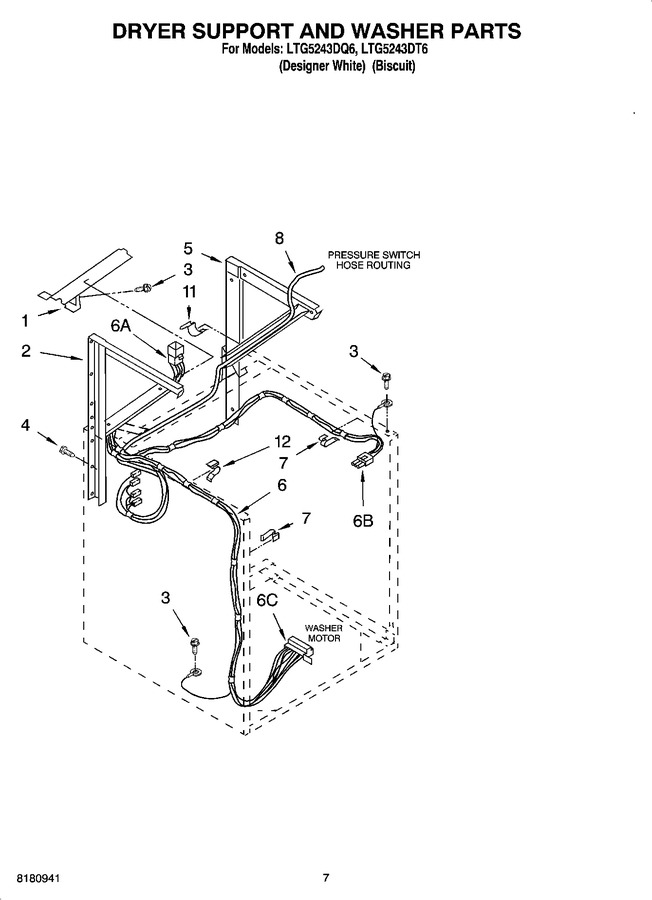

05 - Dryer Support And Washer Parts


06 - Washer Top And Lid Parts


07 - Washer Cabinet Parts


08 - Brake, Clutch, Gearcase, Motor And Pump Parts


09 - Machine Base Parts


10 - Tub And Basket Parts


11 - Water System Parts


12 - Gearcase Parts


13 - Brake And Drive Tube Parts


14 - Product Accessory Parts


15 - Miscellaneous Parts


16 - 3402856 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	694304		Cover, Channel		Appelez-nous	-
2	W11174025		Support, Dryer (l.h.)   (Replaces: 692647)				$ 53.47
3	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
4	W11676450		Screw, 10-24 X 3/8 (8) (washer Cabinet To Dryer Supports)   (Replaces: 3400000)				$ 14.76
5	W11174024		Support, Dryer (r.h.)   (Replaces: 692646)				$ 137.11
6	3957867		Harness, Lower (automatic) (includes Illus. 6a, 6b & 6c)				$ 284.22
7	8528351		Clip, Wiring Harness (4)   (Replaces: 3347812)		Appelez-nous	-
8	WP353244		Hose, Pressure Switch   (Replaces: 8066080)			Immediately	$ 59.93
11	WP90016		Clip, Pressure Switch Hose (2)   (Replaces: 90016)				$ 11.89
12	693141		Clip, Harness		Appelez-nous	-
6A	696074		Plug, Terminal (12-way) (connects With Automatic Console Harness)		Appelez-nous	-
6B	WP62889		Plug, Terminal (3-way) (connects With Automatic Lid Switch Harness)   (Replaces: 62889)				$ 8.04
6C	WP62505		Block, Disconnect (connects With Automatic Washer Motor)   (Replaces: 62505)				$ 24.91

    View Diagram in Separate Window       Print Part List
