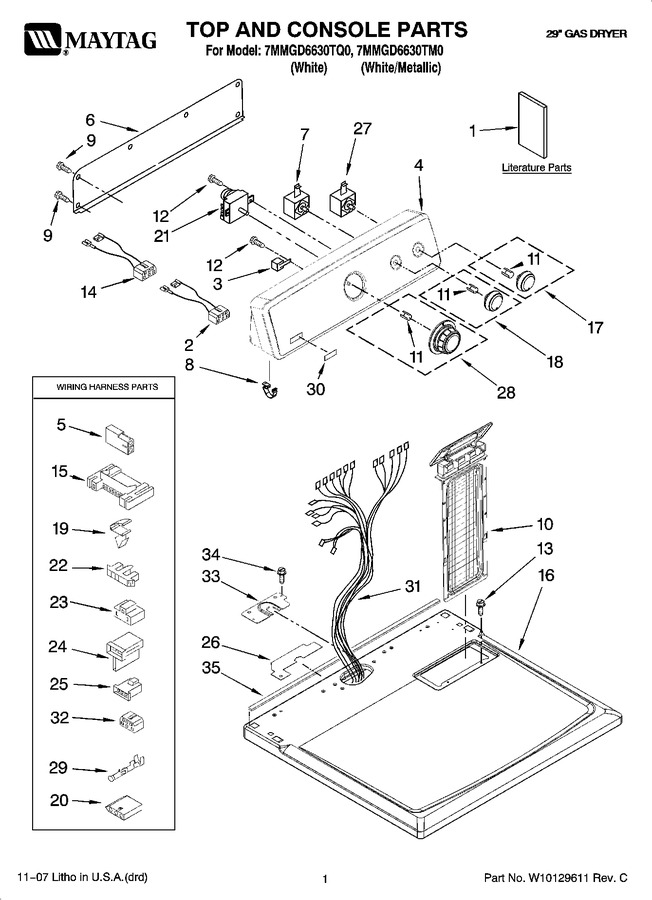

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10118199 | Sheet, Cycle Feature |
|
- | |||||
| 1 | W10118198 | Use & Care Guide |
|
- | |||||
| 1 | 8576793 | Wiring Diagram |
|
- | |||||
| 2 | W10119078 | Wire, Jumper Mini-buzzer |
|
- | |||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 4 | W10116403 | Console & Shell Assembly (includes Items 8 & 30) (white/metallic) |
|
- | |||||
| 4 | W10116404 | Console & Shell Assembly (includes Items 8 & 30) (white) |
|
- | |||||
| 5 | 717252 | Plug, 2-way Terminal |
|
- | |||||
| 6 | W10112576 | Panel, Rear Console |
|
$ 61.99 | |||||
| 7 | 3405152 | Switch, Wrinkle Gaurd |
|
$ 131.07 | |||||
| 8 | WP8312709 | Clip-console (2) (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 9 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | W10119077 | Wire, Jumper Gaurd On/off |
|
- | |||||
| 15 | 3395683 | Connector, Motor |
|
Immediately | $ 54.45 | ||||
| 16 | W10112597 | Top |
|
- | |||||
| 17 | W10110031 | Knob, Push-to-start |
|
- | |||||
| 18 | WPW10110029 | Knob, Control (1) (Replaces: W10110029) |
|
$ 55.41 | |||||
| 19 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 20 | 3936144 | Connector |
|
$ 21.22 | |||||
| 21 | WP3976584 | Timer Assembly (60 Hz.) (Replaces: 3976584) |
|
$ 380.18 | |||||
| 22 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 23 | 3401144 | Connector (pts) Relay |
|
$ 12.81 | |||||
| 24 | WP3403499 | Connector (2) Position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 25 | WP3403498 | Connector, 3 Position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 26 | W10118608 | Seal-harness |
|
- | |||||
| 27 | W10156101 | Switch, Push-to-start |
|
$ 41.09 | |||||
| 28 | W10110030 | Timer-knob Assembly |
|
$ 26.39 | |||||
| 29 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 30 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 72.04 | |||||
| 31 | W10119079 | Harness, Wiring |
|
- | |||||
| 32 | 3347243 | Connector 6-circuit |
|
- | |||||
| 33 | 8565981 | Bracket, Harness |
|
- | |||||
| 34 | W11693756 | Screw, 8-18 X 3/4 (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 35 | W10112267 | Foam-seal Control Bracket |
|
$ 97.53 |
