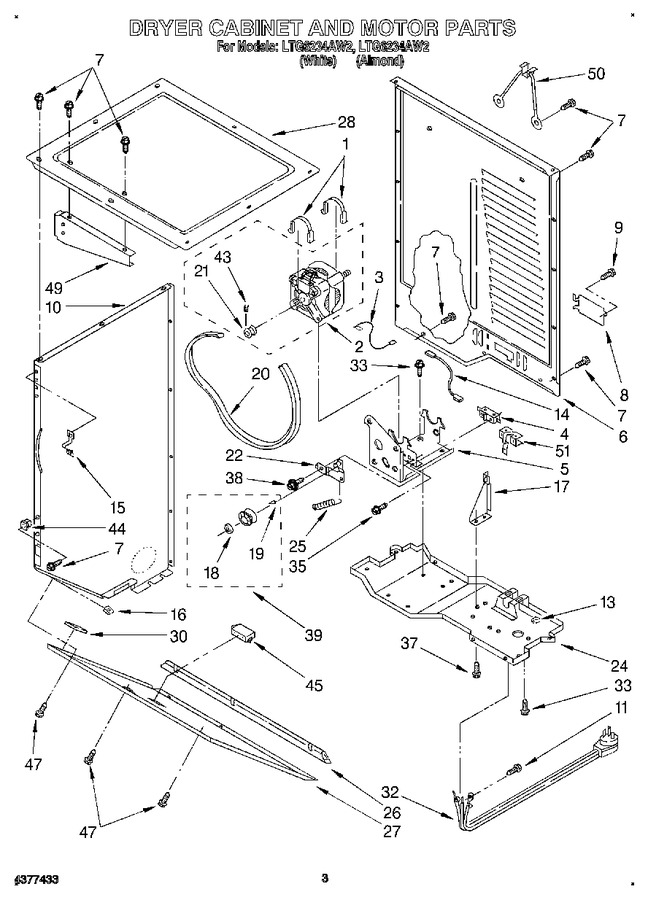

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 8.22 | |||||
| 1 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 8.22 | |||||
| 1 | WP660658 | Clamp, Motor Mounting (2) (Replaces: 660658) |
|
$ 8.22 | |||||
| 2 | 279811 | Motor, Main Drive (60 Hz.) (Replaces: 3395655) |
|
Immediately | $ 388.61 | ||||
| 3 | 3398948 | Wire, Jumper |
|
$ 64.66 | |||||
| 4 | 279782 | Switch, Broken Belt (Replaces: 3394881) |
|
Immediately | $ 58.41 | ||||
| 5 | W11107903 | Bracket, Motor (Replaces: 3388895) |
|
$ 56.62 | |||||
| 6 | 3389847 | Panel, Rear |
|
- | |||||
| 7 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 8 | 279814 | Cover, Terminal Block (Replaces: 3387673) |
|
$ 105.54 | |||||
| 9 | W10850756 | Screw, 10-32 X 1/2 (Replaces: 697776) |
|
$ 8.20 | |||||
| 10 | 3389264 | Panel, Side (white (l.h.)) |
|
$ 350.82 | |||||
| 10 | 3389257 | Panel, Side (almond (r.h.)) |
|
- | |||||
| 10 | 3389256 | Panel, Side (white (r.h.)) |
|
$ 345.87 | |||||
| 10 | 3389265 | Panel, Side (almond (l.h.)) |
|
- | |||||
| 11 | WP3390631 | Screw, Ground (Replaces: 3390631) |
|
$ 8.25 | |||||
| 13 | 697438 | Clip |
|
- | |||||
| 14 | 3394081 | Wire, Broken Belt Switch |
|
$ 37.57 | |||||
| 15 | 3389231 | Clip, Front Panel (2) |
|
$ 13.28 | |||||
| 16 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 17 | W11100260 | Bracket, Bulkhead (Replaces: 3391639) |
|
$ 20.48 | |||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 8.36 | ||||
| 19 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 9.68 | ||||
| 20 | 661570V | Belt, Drive (Replaces: 661570) |
|
Immediately | $ 32.81 | ||||
| 21 | 279811 | Pulley, Motor (60 Hz.) (Replaces: 3391087) |
|
Immediately | $ 388.61 | ||||
| 22 | WPW10547294 | Bracket, Idler (Replaces: 3389332) |
|
Immediately | $ 51.51 | ||||
| 24 | 3391668 | Base, Dryer |
|
- | |||||
| 25 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 26 | 3389683 | Cove, Transition Panel (black) |
|
$ 129.96 | |||||
| 27 | 3397881 | Panel, Transition (white) |
|
- | |||||
| 27 | 3397882 | Panel, Transition (almond) |
|
- | |||||
| 28 | 3389537 | Top, Dryer |
|
- | |||||
| 30 | 3389682 | Spacer (2) |
|
$ 9.23 | |||||
| 32 | 694018 | Cord, Power |
|
- | |||||
| 33 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 35 | WP98129 | Screw (Replaces: 98129) |
|
$ 8.18 | |||||
| 37 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 38 | WP3389420 | Bolt, Shoulder (Replaces: 3389420) |
|
$ 8.62 | |||||
| 39 | 279640 | Pulley, Idler (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 43 | 3392285 | Screw, Set |
|
- | |||||
| 44 | WP692400 | Nut, Push-in (Replaces: 692400) |
|
Immediately | $ 8.02 | ||||
| 45 | 3390192 | Catch, Magnetic |
|
- | |||||
| 47 | WP693304 | Screw And Washer (Replaces: 693304) |
|
$ 8.44 | |||||
| 49 | 3390722 | Shield-console To Drum |
|
- | |||||
| 50 | 3388580 | Cable |
|
- | |||||
| 51 | WP8066120 | Lever, Snap Switch (Replaces: 3391408) |
|
Immediately | $ 34.77 |
