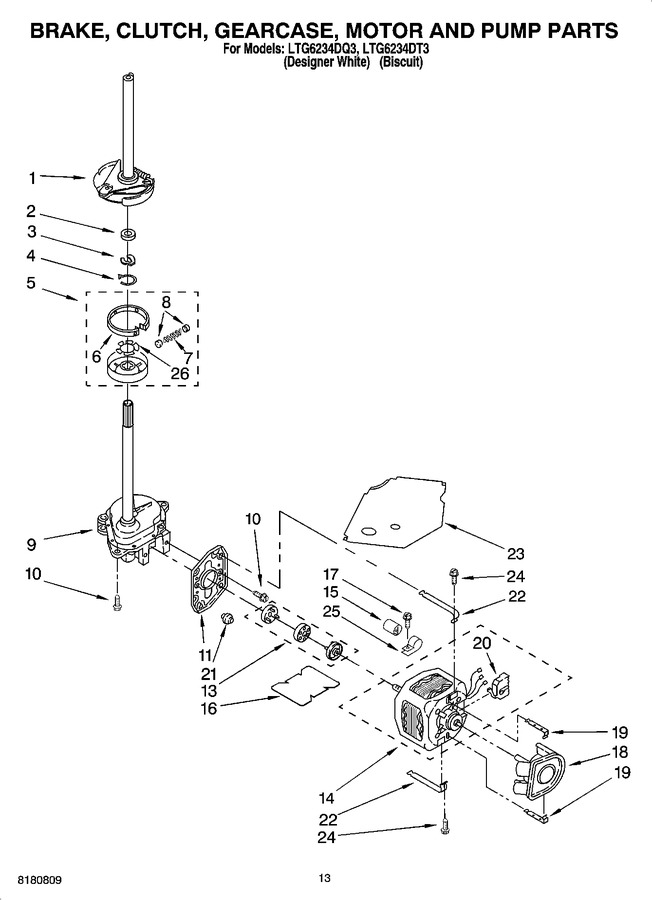

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10820043 |
 |
Brake And Drive Tube (complete) (refer To Page 18 For Further Breakdown) (Replaces: 388951) |
|
|
Immediately |
$ 252.59 |
|
|
| 2 |
WP63292 |
 |
Washer, Spin Tube Thrust (Replaces: 63292) |
|
|
Immediately |
$ 8.10 |
|
|
| 3 |
WPW10080230 |
 |
Ring, Spin Tube Support (Replaces: 62697) |
|
|
|
$ 12.62 |
|
|
| 4 |
285353 |
 |
Ring, Retainer (Replaces: 63283) |
|
|
|
$ 8.52 |
|
|
| 5 |
285785 |
 |
Clutch (complete) (Replaces: 3951311) |
|
|
Immediately |
$ 68.02 |
|
|
| 6 |
285790 |
 |
Band And Lining (includes Illus. 7 & 8) (Replaces: 3951308) |
|
|
Immediately |
$ 50.69 |
|
|
| 7 |
WP3946792 |
|
Spring & Damper Assembly (Replaces: 3946792) |
|
|
|
$ 7.86 |
|
|
| 8 |
WP62646 |
|
Cap, Clutch Spring (2) (Replaces: 62646) |
|
|
|
$ 7.93 |
|
|
| 9 |
3360629 |
 |
Gearcase (complete) (refer To Page 17 For Further Breakdown) (Replaces: 8532118) |
|
|
Immediately |
$ 469.13 |
|
|
| 10 |
WP3400516 |
 |
Screw, (3) 5/16-24 X 3/16 (3) (gearcase To Tub Support) (Replaces: 3357334) |
|
|
Immediately |
$ 7.55 |
|
|
| 11 |
WP62611 |
 |
Plate, Motor Mount To Gearcase (Replaces: 62611) |
|
|
|
$ 122.96 |
|
|
| 13 |
285753A |
 |
Coupling, Motor & Isolating (Replaces: 3364003) |
|
|
Immediately |
$ 25.90 |
|
|
| 14 |
WP661600 |
 |
Motor, Main Drive (Replaces: 661600) |
|
|
Immediately |
$ 262.73 |
|
|
| 15 |
WP8572717 |
 |
Capacitor, Motor Start (Replaces: 661606) |
|
|
Immediately |
$ 97.60 |
|
|
| 16 |
8316060 |
|
Shield, Motor |
|
|
|
$ 76.94 |
|
|
| 17 |
WP3390631 |
 |
Screw, 10-16 X 3/8 (Replaces: 62863) |
|
|
|
$ 8.25 |
|
|
| 18 |
WP3363892 |
 |
Pump (complete) (Replaces: 3363892) |
|
|
Immediately |
$ 94.25 |
|
|
| 19 |
WP8546127 |
 |
Retainer, Pump (Replaces: 8546127) |
|
|
|
$ 8.55 |
|
|
| 20 |
62850 |
|
Switch, Main Drive Motor |
|
Appelez-nous
|
- |
|
|
|
| 21 |
WP62691 |
 |
Grommet, Motor (4) (Replaces: 62691) |
|
|
Immediately |
$ 12.41 |
|
|
| 22 |
WPW10086010 |
 |
Retainer, Motor (2) (Replaces: 3349637) |
|
|
|
$ 8.34 |
|
|
| 23 |
W10838408 |
|
Shield, Tub To Motor (Replaces: 3362089) |
|
|
|
$ 39.30 |
|
|
| 24 |
WP273556 |
 |
Screw, 10-16 X 5/8 (Replaces: 3387485) |
|
|
Immediately |
$ 8.43 |
|
|
| 25 |
357030 |
 |
Clamp, Capacitor |
|
|
|
$ 22.14 |
|
|
| 26 |
WP3355454 |
 |
Clip, Anti-rattle (Replaces: 3355454) |
|
|
|
$ 8.23 |
|
|
