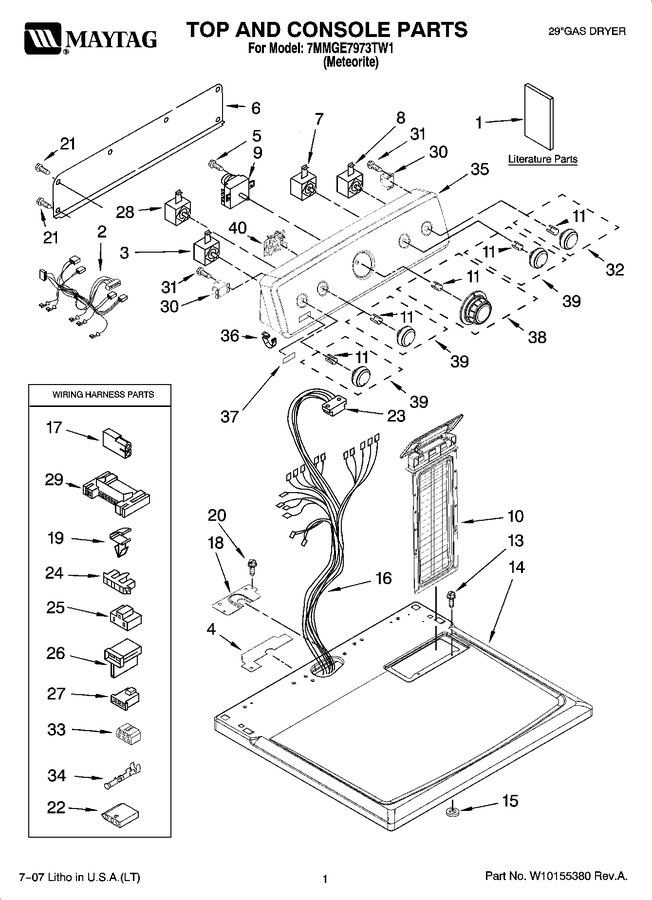

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10118198		Use & Care Guide		Appelez-nous	-
1	W10118201		Dryer, Cycle Sheet		Appelez-nous	-
1	W10118202		Tech, Sheet		Appelez-nous	-
2	W10111088		Harness, Center Control		Appelez-nous	-
3	3405151		Switch, End Of Cycle				$ 193.40
4	W10112603		Seal-harness		Appelez-nous	-
5	WP90767		Screw, 8-18 X 5/8   (Replaces: 8533971)			Immediately	$ 8.25
6	W10112577		Panel, Rear Console		Appelez-nous	-
7	8299970		Switch, Temperature				$ 193.95
8	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
9	WP8299771		Timer Assembly 60 Hz.   (Replaces: 8299771)				$ 347.87
10	W11778253		Screen, Lint (white)   (Replaces: 8565972)			Immediately	$ 54.63
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	W10112599		Top				$ 148.65
15	237446		Washer (top/chute)		Appelez-nous	-
16	W10110998		Harness, Wiring		Appelez-nous	-
17	717252		Plug, 2-way		Appelez-nous	-
18	W10112578		Bracket-harness		Appelez-nous	-
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
20	WP33001882		Screw, 8-18 X 3/4   (Replaces: 337686)				$ 83.71
21	WP693995		Screw, Hex   (Replaces: 693995)			Immediately	$ 7.55
22	3936144		Connector Washer Head				$ 21.22
23	3391885		Connector, Edge				$ 90.72
24	3397269		Connector-timer				$ 25.55
25	3401144		Connector (pts) Relay				$ 12.81
26	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 6.02
27	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
28	3405152		Switch, Wrinkle Gaurd				$ 131.07
29	3395683		Connector, Motor			Immediately	$ 54.45
30	WP3405281		Power Relay   (Replaces: 3405281)			Immediately	$ 54.85
31	WP3388228		Screw, 6-20 X 1/32   (Replaces: 3388228)				$ 7.30
32	W10112574		Knob, Push-to-start		Appelez-nous	-
33	3347243		Connector 6-circuit		Appelez-nous	-
34	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
35	W10116406		Console & Control Panel Assembly (includes. Illus. 36 & 37)		Appelez-nous	-
36	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
37	W10203949		Badge Assembly   (Replaces: W10112569)				$ 72.04
38	WPW10110036		Timer Knob Assembly   (Replaces: W10112573)				$ 65.46
39	WPW10110035		Knob, Control (3)   (Replaces: W10112572)				$ 60.98
40	W10111812		Control-assembly		Appelez-nous	-
