SELECT A DIAGRAM

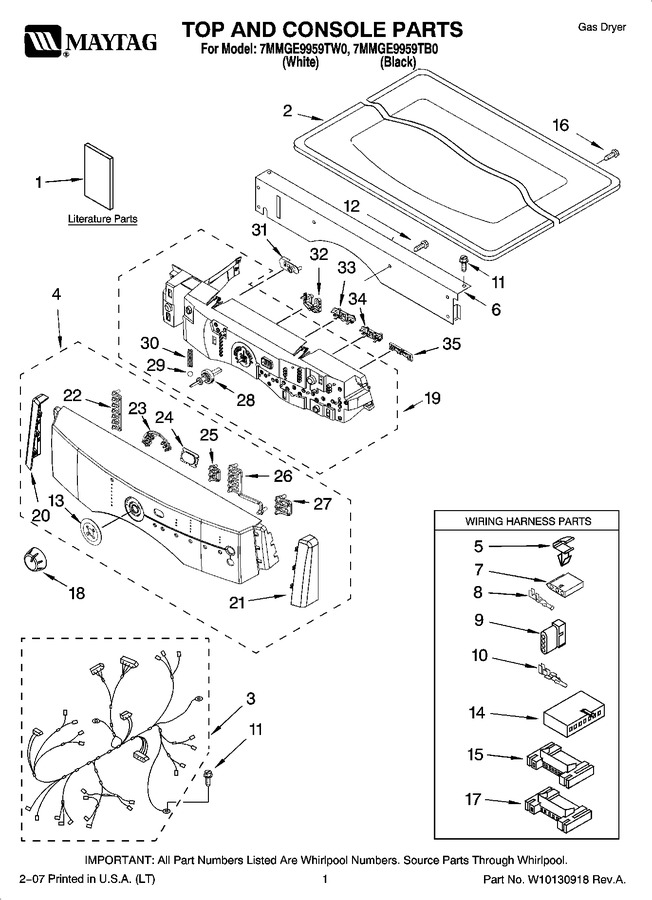

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10115138		Use & Care Guide		Appelez-nous	-
1	W10115139		Tech Sheet		Appelez-nous	-
1	W10115137		Guide, Quick Start		Appelez-nous	-
2	8519251		Top (white)		Appelez-nous	-
2	8579997		Top (black)		Appelez-nous	-
3	8299950		Harness, Main		Appelez-nous	-
4	W10098940		Panel, Console (includes Bezel, Light Indicators & Endcaps) (white)		Appelez-nous	-
4	W10098960		Panel, Console (includes Bezel, Light Indicators & Endcaps) (black)		Appelez-nous	-
5	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.79
6	8519271		Bracket, Console		Appelez-nous	-
7	353424		Connector Sensor				$ 18.95
8	WP94614		Terminal   (Replaces: 94614)				$ 7.67
9	3936144		Plug, Terminal				$ 20.21
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
12	WP488787		Screw, 8-18 X 1/2   (Replaces: 488886)				$ 10.58
13	8542690		Bezel, Cycle		Appelez-nous	-
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector, Motor			Immediately	$ 51.86
16	8281225		Screw, 8-18 X 1/2		Appelez-nous	-
17	2203186		Connector, 5-circuit				$ 12.55
18	8580139		Knob, Assembly				$ 30.87
19	8558455		User Interface (includes Illus. 28, 29 & 30)				$ 315.33
20	8562598		Endcap(lh) (white)		Appelez-nous	-
20	8580135		Endcap (lh) (black)		Appelez-nous	-
21	8580134		Endcap (rh) (black)		Appelez-nous	-
21	8562597		Endcap (rh) (white)		Appelez-nous	-
22	8542682		Light Indicator (status)		Appelez-nous	-
23	8542683		Light Indicator (cycle)		Appelez-nous	-
24	8542691		Lens, Display		Appelez-nous	-
25	8542684		Light Indicator (dryness Level)		Appelez-nous	-
26	8542685		Light Indicator (temperature)		Appelez-nous	-
27	8542686		Light Indicator (xcare/eoc)		Appelez-nous	-
28	8542717		Shaft, Cycle Selector				$ 44.40
29	8542716		Bearing, Knob				$ 37.96
30	8542715		Spring, Knob				$ 43.73
31	8562606		Pushbutton, (control) (silver (for White Model))				$ 92.42
31	8580140		Pushbutton, (control) (silver (for Black Model))				$ 62.92
32	8579989		Pushbutton, (drytime) (silver)		Appelez-nous	-
32	W10100390		Pushbutton, (drytime) (white)				$ 59.08
33	8562604		Pushbutton, (dryness/temp) (white)				$ 54.60
33	8579991		Pushbutton, (dryness/temp) (silver)		Appelez-nous	-
34	8562605		Pushbutton, (xcare/eoc) (white)		Appelez-nous	-
34	8579993		Pushbutton, (xcare/eoc) (silver)		Appelez-nous	-
35	8558454		Pushbutton, (start/cancel) (silver (for White Model))				$ 36.53
35	8579994		Pushbutton (start/cancel) (silver (for Black Model))				$ 62.32

    View Diagram in Separate Window       Print Part List
