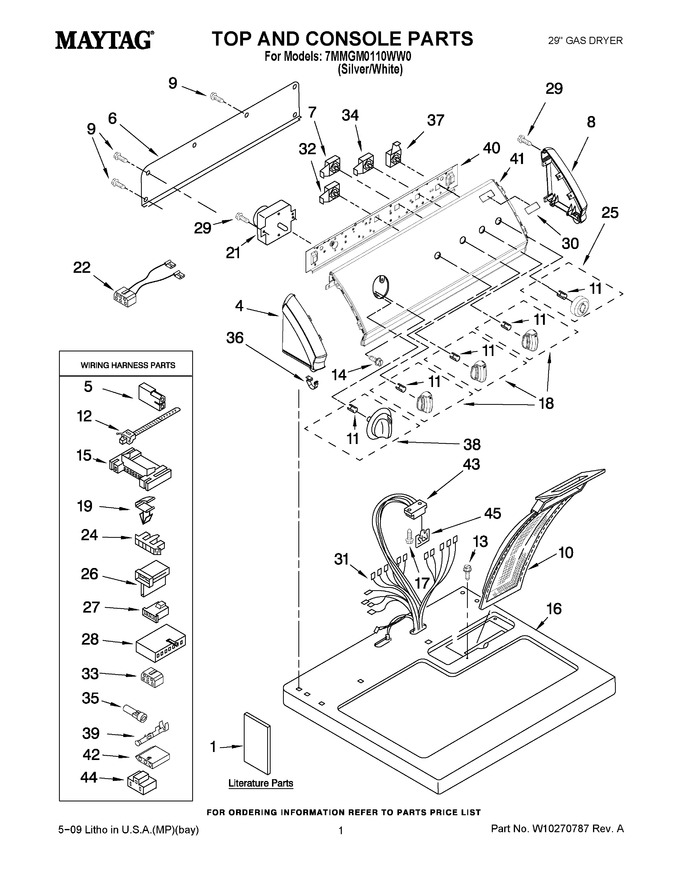

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10118198		Installation Instructions		Appelez-nous	-
1	8299791		Wiring Diagram		Appelez-nous	-
1	W10246604		Sheet, Cycle Feature		Appelez-nous	-
4	WP8559502		Cap, End (l.h.)   (Replaces: 8559502)				$ 69.51
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	3405154		Switch Rotary (twist Mount)				$ 152.88
8	WP8559501		Cap, End (r.h.)   (Replaces: 8559501)				$ 69.30
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	W11778253		Screen, Lint   (Replaces: 8559787)			Immediately	$ 52.03
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	3391249		Tie, Cable		Appelez-nous	-
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.22
15	3395683		Connector, Motor			Immediately	$ 51.86
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 332.62
17	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
18	WPW10327523		Knob, Control (3)   (Replaces: W10192636)				$ 52.50
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.79
21	WP3406725		Timer Assembly 60 Hz.   (Replaces: 3406725)				$ 368.58
22	3401668		Jumper, Wire		Appelez-nous	-
24	3397269		Connector-timer				$ 25.55
25	W10192635		Knob, Push-to-start				$ 5.85
26	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 5.73
27	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 6.95
28	3936150		Connector, 7-circuit				$ 77.60
29	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
30	W10153170		Assembly, Badge				$ 28.25
31	8299891		Harness, Wiring		Appelez-nous	-
32	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 223.93
33	3347243		Connector 6-circuit		Appelez-nous	-
34	WP3398093		Switch, Signal   (Replaces: 3398093)				$ 146.35
35	351297		Plug, Harness		Appelez-nous	-
36	WP8312709		Clip-console (2)   (Replaces: 8312709)			Immediately	$ 16.35
37	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
38	WPW10327522		Timer Knob Assembly   (Replaces: W10169851)				$ 48.54
39	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
40	8559772		Bracket, Control		Appelez-nous	-
41	W10244065		Panel, Control		Appelez-nous	-
42	3936144		Connector				$ 20.21
43	3391885		Connector, Edge				$ 86.40
44	3401144		Connector (pts) Relay				$ 12.20
45	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 314.22
