View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

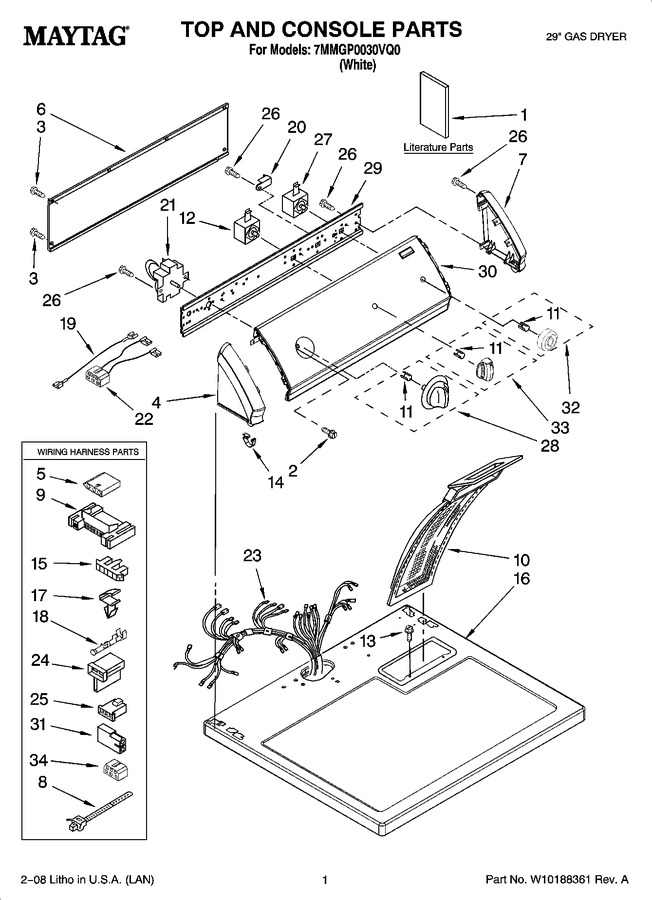

01 - Top And Console Parts
02 - Cabinet Parts
03 - 8318272 Burner Assembly
04 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8533203 | Wiring Diagram |
|
- | |||||
| 1 | W10155425 | Sheet, Cycle Feature |
|
- | |||||
| 1 | W10118198 | Installation Instructions |
|
- | |||||
| 2 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10128464 | Cap, End (l.h.) |
|
- | |||||
| 5 | 3936144 | Connector |
|
$ 21.22 | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 7 | W10128463 | Cap, End (r.h.) |
|
- | |||||
| 8 | 3391249 | Tie, Cable |
|
- | |||||
| 9 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 10 | W10874409 | Screen, Lint (Replaces: 8559786) |
|
Immediately | $ 67.01 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | 3405152 | Switch, (guard) |
|
$ 131.07 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: W10129041) |
|
Immediately | $ 16.35 | ||||
| 15 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 18 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 19 | 3401674 | Wire, Jumper (black) |
|
$ 34.37 | |||||
| 20 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 21 | WP3976584 | Timer Assembly (60 Hz.) (Replaces: 3976584) |
|
$ 380.18 | |||||
| 22 | 8283292 | Wire, Jumper (guard On/off) |
|
- | |||||
| 23 | 8299876 | Harness, Wiring |
|
- | |||||
| 24 | WP3403499 | Connector (2) Position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 25 | WP3403498 | Connector, 3 Position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 26 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 27 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 28 | 8571409 | Timer Knob Assembly |
|
$ 36.91 | |||||
| 29 | 8559772 | Bracket, Control |
|
- | |||||
| 30 | W10155414 | Panel, Control |
|
- | |||||
| 31 | 717252 | Receptacle, Latching (2-way) |
|
- | |||||
| 32 | 3956790 | Knob, Push-to-start |
|
$ 74.10 | |||||
| 33 | W10816321 | Knob, Control (Replaces: 3956788) |
|
$ 57.07 | |||||
| 34 | 3347243 | Connector 6-circuit |
|
- |
