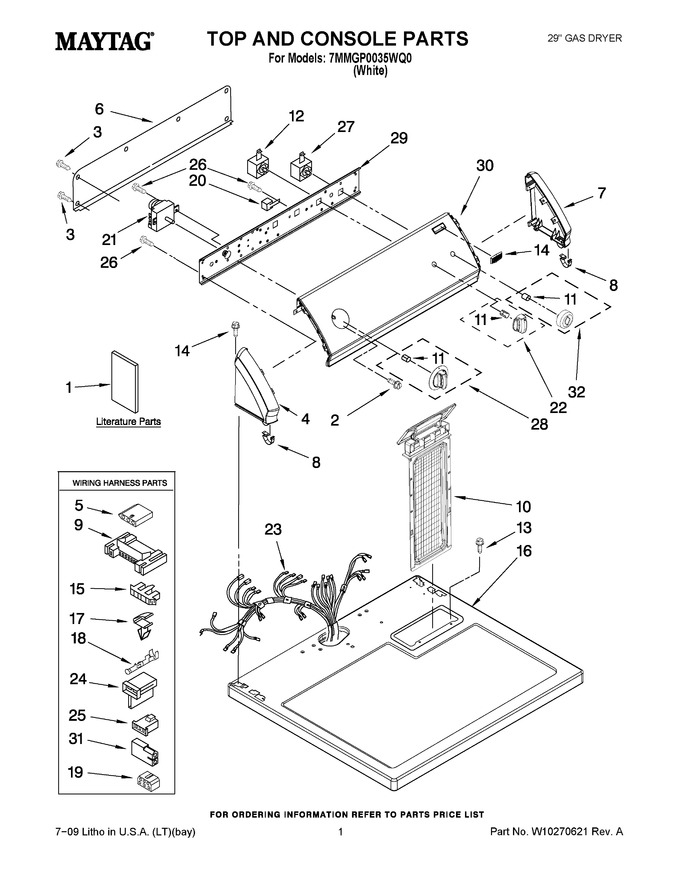

01 - Top And Console Parts
02 - Cabinet Parts
03 - 8318272 Burner Assembly
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10185979 | Wiring Diagram |
|
- | |||||
| 1 | W10118198 | Use And Care Guide |
|
- | |||||
| 1 | W10246604 | Sheet, Cycle Feature |
|
- | |||||
| 2 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | WP8559502 | Cap, End (l.h.) (Replaces: 8559502) |
|
$ 72.99 | |||||
| 5 | 3936144 | Connector |
|
$ 21.22 | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 7 | WP8559501 | Cap, End (r.h.) (Replaces: 8559501) |
|
$ 72.77 | |||||
| 8 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 9 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 10 | W10874409 | Screen, Lint (Replaces: 8559786) |
|
Immediately | $ 67.01 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | 3405152 | Switch, (gaurd) |
|
$ 131.07 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | W10153170 | Badge, Maytag |
|
$ 28.25 | |||||
| 15 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 18 | WP94614 | Terminal (Replaces: 94614) |
|
$ 8.05 | |||||
| 19 | 3347243 | Connector 6-circuit |
|
- | |||||
| 20 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 21 | WPW10185969 | Timer Assembly, 60 Hz. (Replaces: W10185969) |
|
$ 334.18 | |||||
| 22 | W10816321 | Knob, Control (Replaces: 3956788) |
|
$ 57.07 | |||||
| 23 | W10111050 | Harness, Wiring |
|
- | |||||
| 24 | WP3403499 | Connector (2) Position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 25 | WP3403498 | Connector, 3 Position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 26 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 27 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 28 | 8571409 | Timer Knob Assembly |
|
$ 36.91 | |||||
| 29 | 8559772 | Bracket, Control |
|
- | |||||
| 30 | W10244063 | Panel, Control |
|
- | |||||
| 31 | 717252 | Receptacle, Latching (2-way) |
|
- | |||||
| 32 | 3956790 | Knob, Push-to-start |
|
$ 74.10 |
