SELECT A DIAGRAM

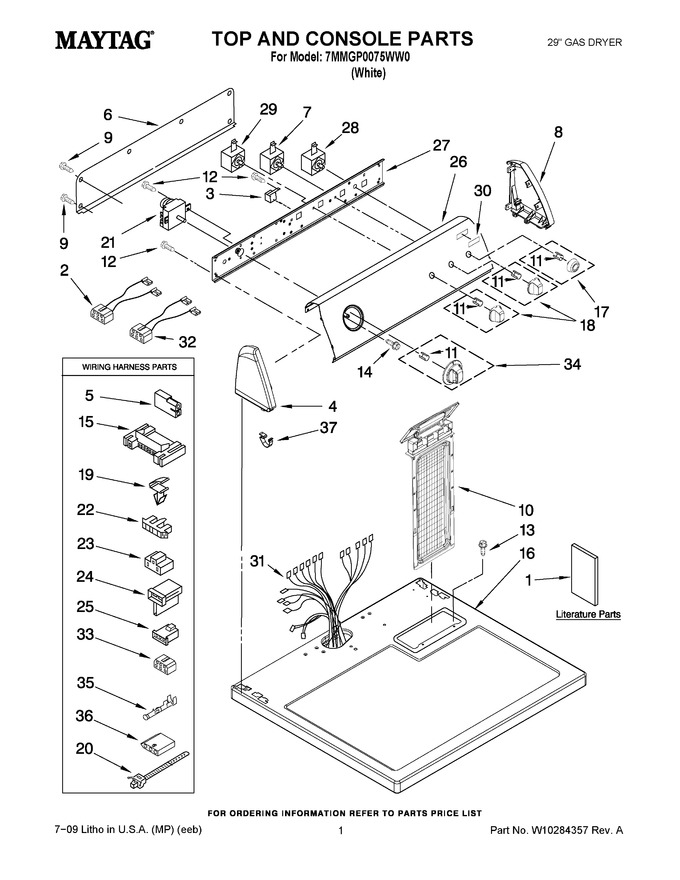

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10246604		Sheet, Cycle Feature		Appelez-nous	-
1	W10118198		Instructions, Installation		Appelez-nous	-
1	8578217		Wiring Diagram		Appelez-nous	-
2	3401695		Wire, Jumper (black)		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WP8559502		Cap, End (l.h.) (white)   (Replaces: 8559502)				$ 72.99
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
8	WP8559501		Cap, End (r.h.) (white)   (Replaces: 8559501)				$ 72.77
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint (white)   (Replaces: 8559787)			Immediately	$ 54.63
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector, Motor			Immediately	$ 54.45
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	3956790		Knob, Push-to-start (white)				$ 74.10
18	W10816321		Knob, Control (2) (white)   (Replaces: 3956788)				$ 57.07
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
20	3391249		Cable Tie		Appelez-nous	-
21	WP8299765		Timer Assembly (60 Hz.)   (Replaces: 8299765)				$ 336.63
22	3397269		Connector-timer				$ 25.55
23	3401144		Connector (pts) Relay				$ 12.81
24	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 6.02
25	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
26	W10244064		Panel Control (white)		Appelez-nous	-
27	8559772		Bracket, Control		Appelez-nous	-
28	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
29	3405152		Switch, Wrinkle Gaurd				$ 131.07
30	W10153170		Badge				$ 28.25
31	8299878		Harness, Wiring		Appelez-nous	-
32	8539893		Wire, Jumper (temperature)   (Replaces: 3396029)				$ 19.78
33	3347243		Connector		Appelez-nous	-
34	8571409		Timer Knob Assembly (white)				$ 36.91
35	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
36	3936144		Connector				$ 21.22
37	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35

    View Diagram in Separate Window       Print Part List
