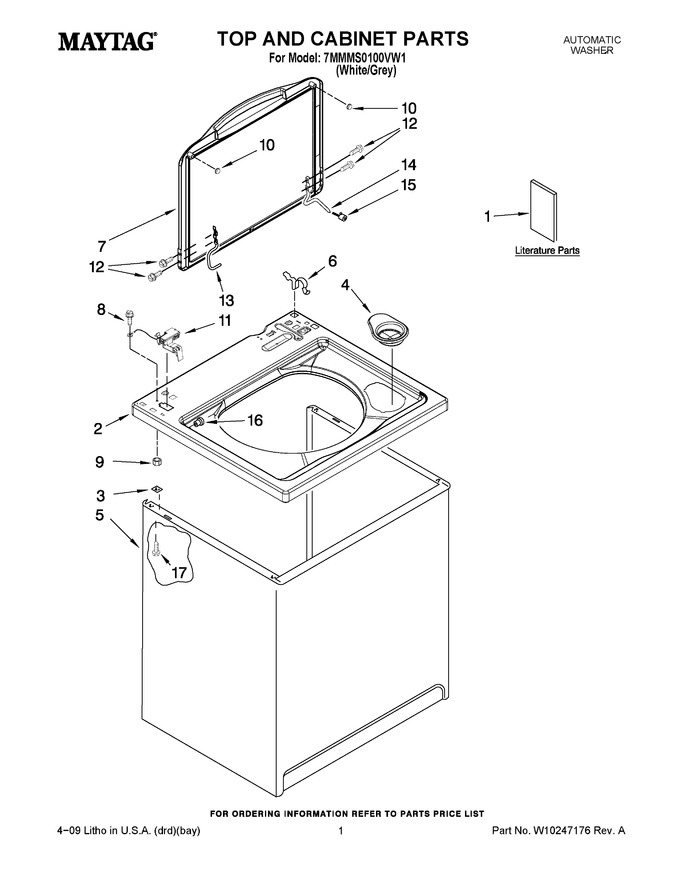

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10155456 | Use & Care Guide |
|
- | |||||
| 1 | W10224331 | Wiring Diagram |
|
- | |||||
| 1 | W10155424 | Energy Guide (mexico) |
|
- | |||||
| 1 | W10155421 | Feature Sheet |
|
- | |||||
| 2 | 8543488 | Top |
|
- | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (Replaces: 62750) |
|
Immediately | $ 7.69 | ||||
| 4 | 8566266 | Dispenser, Bleach |
|
$ 39.81 | |||||
| 5 | 63424 | Cabinet |
|
$ 370.02 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.80 | ||||
| 7 | W10168897 | Lid Assembly |
|
- | |||||
| 8 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 9 | W10080180 | Nut, Hex (Replaces: 8533959) |
|
$ 13.48 | |||||
| 10 | W10181289 | Bumper, Lid (2) |
|
- | |||||
| 11 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 39.82 | ||||
| 12 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: W10119828) |
|
Immediately | $ 7.19 | ||||
| 13 | 8559336 | Hinge, Lid (l.h.) |
|
- | |||||
| 14 | WP54583 | Hinge, Lid (r.h.) (Replaces: 54583) |
|
$ 29.56 | |||||
| 15 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 16 | 8319539 | Bearing, Lid Hinge (2) |
|
$ 5.51 | |||||
| 17 | W10165554 | Screw, 10-16 X 3/8 (4) |
|
$ 11.55 |
