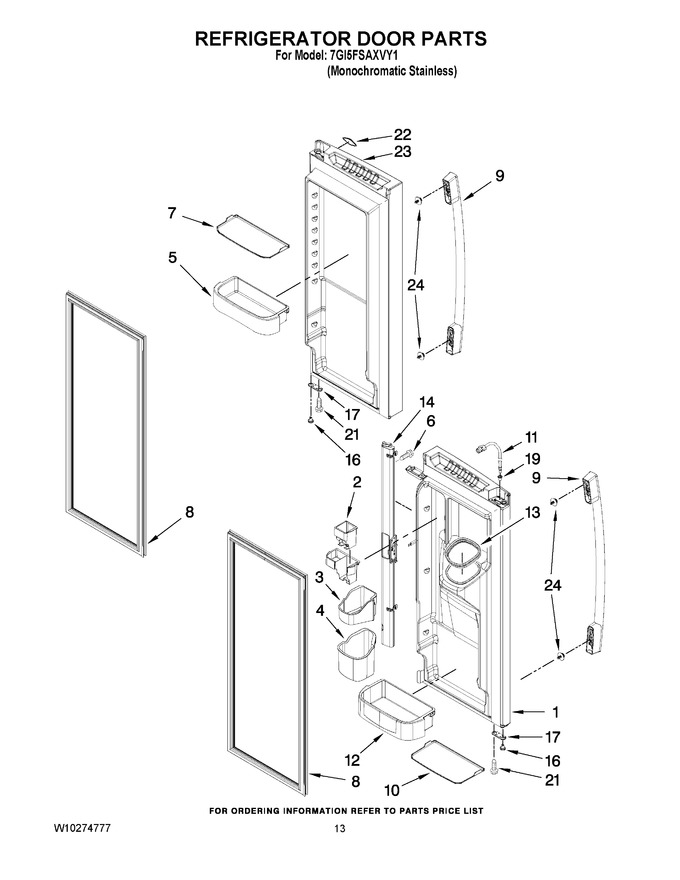

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12978029SQ		Door, Left (mono Stainless)				$ 439.53
2	13009903		Dispenser, Can				$ 54.16
3	WP12977402		Bucket, Upper   (Replaces: 12977402)				$ 79.60
4	WP12977502		Bucket, Lower   (Replaces: 12977502)				$ 84.55
5	WPW10451500		Bucket, Medium   (Replaces: W10157873)				$ 107.67
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	W10450032		Gripper, Bucket (medium)   (Replaces: W10138063)				$ 105.91
8	W10830055		Gasket, Door (apollo Grey)   (Replaces: W10163991)			Immediately	$ 229.10
9	W11351147		Handle, Door (stainless)   (Replaces: W10223019)				$ 198.22
10	W10450033		Gripper, Bucket (gallon)   (Replaces: W10138061)				$ 87.28
11	12962106		Waterline, Door				$ 133.09
12	WPW10451501		Bucket, Gallon   (Replaces: W10134727)			Immediately	$ 109.44
13	WPW10287601		Seal, Ice Chute   (Replaces: 12999902)			Immediately	$ 32.76
14	WP12722813AP		Mullion, Door (apollo Grey)   (Replaces: 12722813AP)				$ 340.89
16	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
17	W11703060		Stop, Door (apollo Grey)   (Replaces: 12968202AP)				$ 15.46
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
21	WP98165		Screw   (Replaces: 12990521)				$ 8.57
22	2220214		Nameplate				$ 32.43
23	12978028SQ		Door, Right (mono Stainless)		Appelez-nous	-
24	WP12992902		Screw, Handle (shoulder)   (Replaces: 12992902)				$ 11.91
