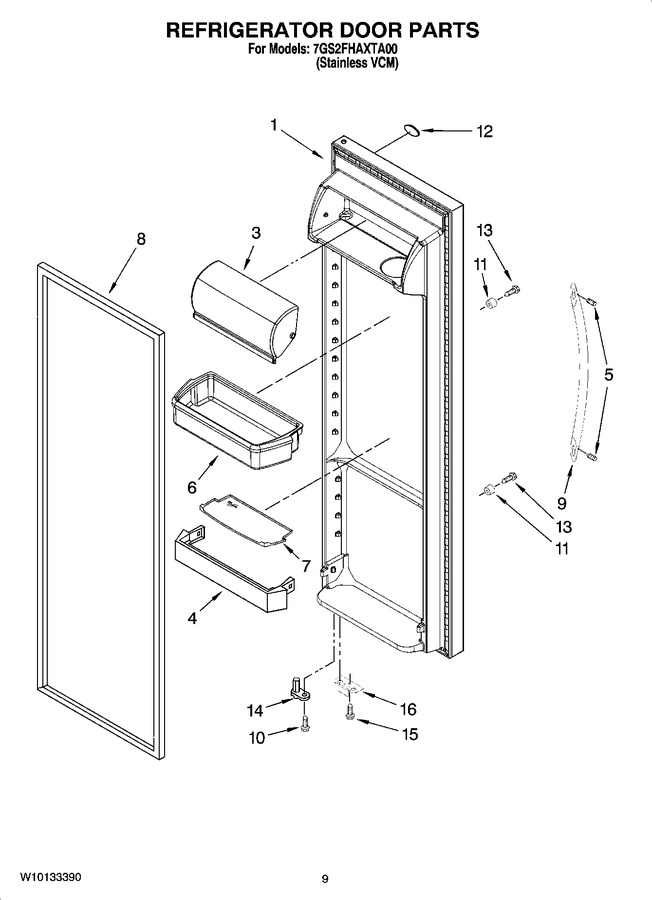

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10119938 | Refrigerator Door (includes Item 8) (stainless Vcm) |
|
- | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 4 | WP2156022 | Trivet, Shelf (Replaces: 2156022) |
|
Immediately | $ 70.75 | ||||
| 5 | 8533918 | Screw, Set |
|
- | |||||
| 6 | 2304952K | Door Bin (2) |
|
- | |||||
| 7 | 2223464K | Mat, Bin |
|
- | |||||
| 8 | 2159073 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221300) |
|
$ 299.87 | |||||
| 9 | 2254604S | Handle (stainless) |
|
$ 104.99 | |||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 11 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.69 | ||||
| 12 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 13 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 15 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 16 | 2200082 | Bracket, Door Stop (chrome) |
|
$ 5.83 |
