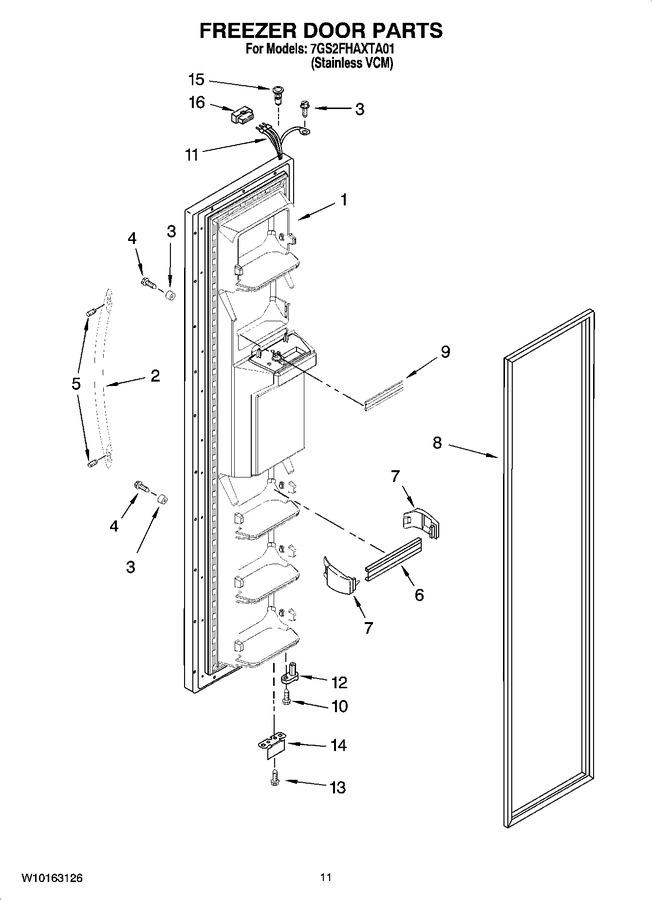

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10119943 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Vcm) |
|
- | |||||
| 2 | 2254604S | Handle (stainless) |
|
$ 104.99 | |||||
| 3 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 4 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 5 | 8533918 | Set Screw |
|
- | |||||
| 6 | 2313198K | Trim, Door (3) |
|
- | |||||
| 7 | 2195917 | Endcap (6) |
|
- | |||||
| 8 | W10136733 | Door Gasket, Magnetic (apollo Grey) (Replaces: 2326337) |
|
$ 341.89 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2212375) |
|
Immediately | $ 23.11 | ||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 11 | W10683539 | Wire Harness (Replaces: 2187725) |
|
$ 36.53 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 14 | 2200082 | Bracket, Door Stop (chrome) |
|
$ 5.83 | |||||
| 15 | WP2182181 | Thimble-top (Replaces: 2200086) |
|
$ 7.76 | |||||
| 16 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 23.65 |
