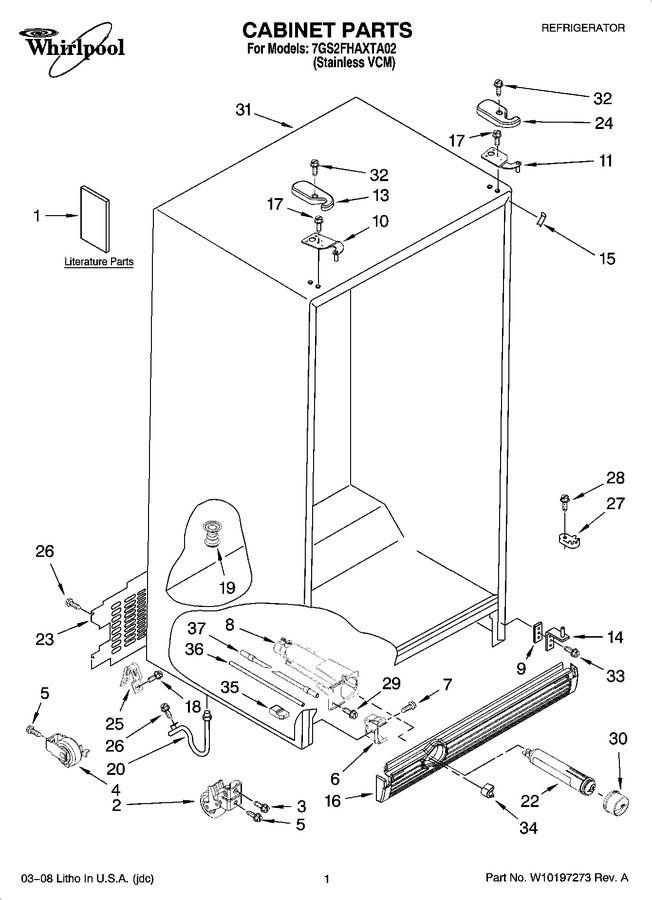

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10119885 | Energy Guide |
|
- | |||||
| 1 | 2261037 | Instruction Sheet, Door Removal |
|
- | |||||
| 1 | 2220407 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 2324287 | Use & Care Guide |
|
- | |||||
| 1 | W10142176 | Service & Wiring Sheet |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 11.88 | |||||
| 4 | WPW10250570 | Rear Roller (2) (Replaces: 2196236) |
|
$ 40.17 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 8 | WPW10121138 | Housing, Water Filter (Replaces: 2260507) |
|
Immediately | $ 112.91 | ||||
| 9 | 2209697 | Shim (2) |
|
$ 41.25 | |||||
| 10 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 95.52 | |||||
| 11 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 98.22 | |||||
| 13 | 2203407AP | Hinge Cover (fc) (apollo Grey) |
|
- | |||||
| 14 | 8201707 | Hinge Bottom (2) (Replaces: 2304322) |
|
$ 88.90 | |||||
| 15 | W10143043 | Filler, Wrapper (apollo Grey) |
|
- | |||||
| 16 | 2260501MG | Grille (midnight Grey) |
|
- | |||||
| 17 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 18 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 19 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 50.90 | ||||
| 20 | W11512417 | Extension Tube (Replaces: 2304937) |
|
$ 34.79 | |||||
| 22 | EDR3RXD1B | Water Filter (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 23 | 2188737 | Cover, Unit |
|
- | |||||
| 24 | 2203408AP | Hinge Cover, Rc (apollo Grey) |
|
$ 94.47 | |||||
| 25 | 489348 | Clamp, Service Cord |
|
- | |||||
| 26 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 27 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.43 | ||||
| 28 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.87 | |||||
| 29 | WP489500 | Screw (Replaces: 489500) |
|
$ 7.78 | |||||
| 30 | WP2260518MG | Cap, Water Filter (midnight Grey) (Replaces: 2260502MG) |
|
$ 56.03 | |||||
| 32 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.44 | |||||
| 33 | WP489497 | Screw (4) (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 34 | 2260503MG | Button, Water Filter (midnight Grey) |
|
$ 27.01 | |||||
| 35 | 2260519 | Block, Housing Support |
|
- | |||||
| 36 | W11496481 | Tube, Filter Outlet (Replaces: 2255153) |
|
Immediately | $ 35.42 | ||||
| 37 | 8201597 | Tube, Filter Inlet (Replaces: 2319867) |
|
Immediately | $ 77.02 |
