SELECT A DIAGRAM
New Model Search:

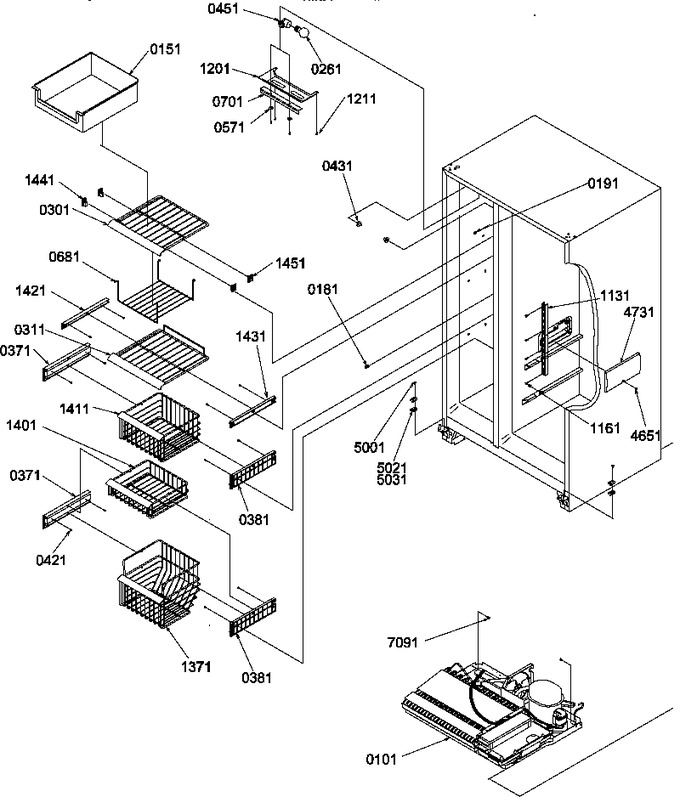

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | Y00000000 | See Note Mc Assy -- (see Page 22 & 23 For Assy Breakdown) |
|
- | |||||
| 151 | D7806201 | Pan, Ice |
|
- | |||||
| 181 | M0322202 | Tie Wire |
|
- | |||||
| 191 | M0580007 | Grommet, Screw |
|
- | |||||
| 261 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 301 | 12012502 | Shelf, Stat. Freezer |
|
- | |||||
| 311 | 12012103 | Shelf, Sld. Freezer |
|
- | |||||
| 371 | 12013002 | Rail, L. Dbl Shelf |
|
- | |||||
| 381 | 10991802 | Rail- R Double |
|
- | |||||
| 421 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 431 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 451 | C8973404 | Socket-light |
|
- | |||||
| 571 | M0270508 | Washer |
|
- | |||||
| 681 | 12013901 | Rack, Freezer |
|
- | |||||
| 701 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 1131 | D7599003 | Ladder, Center |
|
- | |||||
| 1161 | M0238636 | Screw-sm |
|
- | |||||
| 1201 | 10493302 | Cover, Frz Light |
|
- | |||||
| 1211 | M0238846 | Screw-sm |
|
- | |||||
| 1371 | 12011903 | Basket, 11`` Freezer |
|
- | |||||
| 1401 | 12011803 | Basket, 7`` Freezer |
|
- | |||||
| 1411 | 12011703 | Basket, 3`` Freezer |
|
- | |||||
| 1421 | 12012803 | Rail, L. Dbl Shelf |
|
- | |||||
| 1431 | 10991403 | Rail-r Shelf |
|
- | |||||
| 1441 | 12015002 | Support, Shelf (lt) |
|
$ 7.38 | |||||
| 1451 | WP10941102 | Support, Shelf (rt) |
|
$ 11.81 | |||||
| 4651 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 4731 | Y10270101 | Cover-light |
|
- | |||||
| 5001 | W11227370 | Screw, Lock Brake Mounting (Replaces: M0220418) |
|
Immediately | $ 14.91 | ||||
| 5021 | B8387703 | Shim, Door Closure |
|
- | |||||
| 5031 | WP67005716 | Shim, Dr Closure (blk) (Replaces: B8387704) |
|
$ 7.83 | |||||
| 7091 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 |
