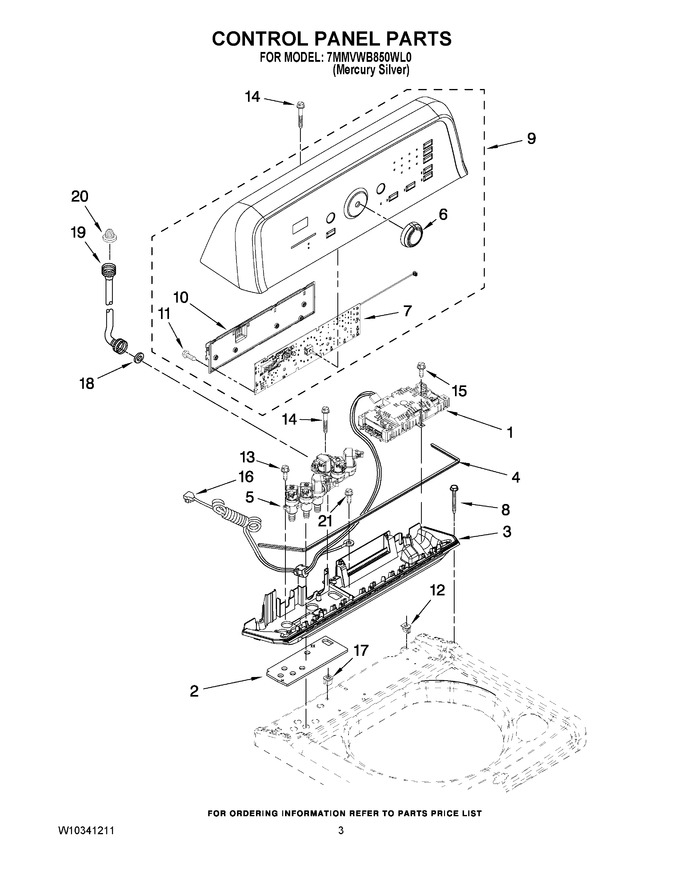

02 - Control Panel Parts


03 - Motor, Basket And Tub Parts


04 - Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10335055		Control Unit Assembly, Machine & Motor		Appelez-nous	-
2	W10141695		Gasket, Valve Tray				$ 36.82
3	W10110846		Tray Assembly, Console (includes Items 2 & 4)		Appelez-nous	-
4	W10141693		Gasket, Console/tray		Appelez-nous	-
5	W10291036		Valve, Log Assembly (includes Upper Harness)		Appelez-nous	-
6	WPW10051126		Knob, Control   (Replaces: W10051126)				$ 51.21
7	WPW10260184		User Interface   (Replaces: W10260184)				$ 291.76
8	W10004990		Screw, 6-20 X 1.2		Appelez-nous	-
9	W10090761		Console		Appelez-nous	-
10	W10051124		Cover, Rear- User Interface				$ 251.11
11	WP4449745		Screw, 6-19 X 1/2   (Replaces: W10003770)				$ 7.49
12	W10022060		Nut, Push-in		Appelez-nous	-
13	WPW10052600		Screw, 8-18 X 3/4   (Replaces: W10052600)				$ 6.95
14	8565324		Screw, 10-16 X 1.75				$ 13.38
15	WP8281136		Screw, 8-18 X 3/4   (Replaces: 8281136)				$ 6.95
16	W10299984		Cord Assembly, Power				$ 73.00
17	98460		Nut, Push-in				$ 12.07
18	WP16123		Washer, Water Inlet Hose   (Replaces: W10242307)				$ 7.70
19	98460		Hose, Water Inlet (cold Water)				$ 12.07
19	WP16123		Hose, Water Inlet (hot Water)   (Replaces: W10242307)				$ 7.70
20	285452A		Washer, Filter   (Replaces: 353362)			Immediately	$ 9.23
21	WP3351614		Screw, Power Cord Ground   (Replaces: 3351614)			Immediately	$ 6.95
