SELECT A DIAGRAM

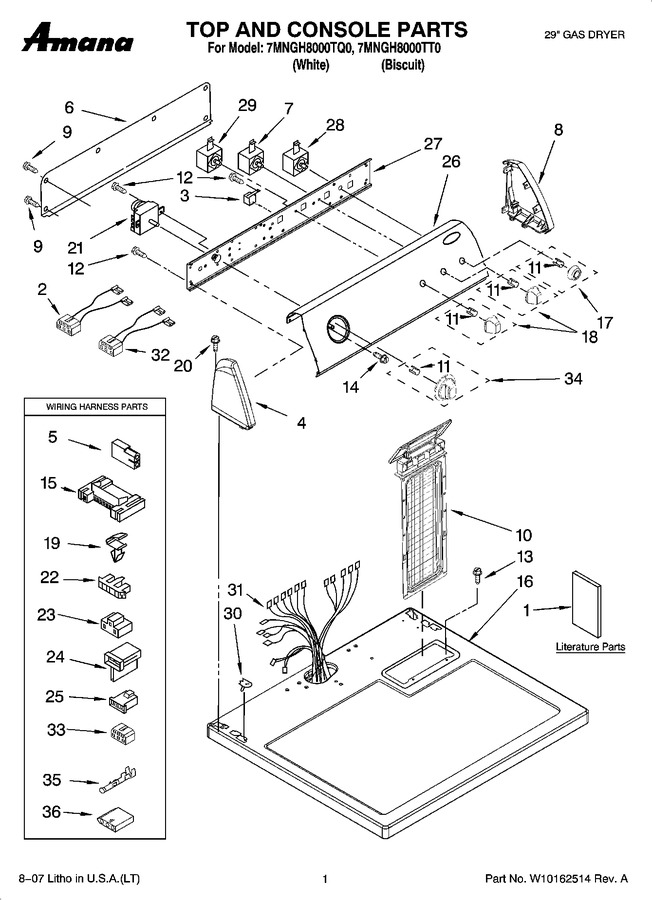

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8578217		Wiring Diagram		Appelez-nous	-
1	W10143415		Sheet, Cycle Feature		Appelez-nous	-
1	W10143416		Instructions, Installation		Appelez-nous	-
1	W10143418		Use & Care Guide		Appelez-nous	-
2	3401695		Wire, Jumper (black)		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	8271369		Cap, End (l.h.) (white)		Appelez-nous	-
4	8314852		Cap, End (l.h.) (biscuit)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
8	8314851		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	8271363		Cap, End (r.h.) (white)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	8557858		Screen, Lint (biscuit)		Appelez-nous	-
10	W11778253		Screen, Lint (white)   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector, Motor			Immediately	$ 54.45
16	8557931		Top (biscuit)		Appelez-nous	-
16	8557930		Top (white)		Appelez-nous	-
17	WPW10110049		Knob, Push-to-start (white)   (Replaces: W10110049)				$ 52.86
17	W10112609		Knob, Push-to-start (biscuit)		Appelez-nous	-
18	W10112607		Knob, Control (2) (biscuit)		Appelez-nous	-
18	WPW10110047		Knob, Control (2) (white)   (Replaces: W10110047)				$ 55.52
19	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
20	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
21	WP8299765		Timer Assembly (60 Hz.)   (Replaces: 8299765)				$ 336.63
22	3397269		Connector-timer				$ 25.55
23	3401144		Connector (pts) Relay				$ 12.81
24	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 6.02
25	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
26	W10142365		Panel Control (biscuit)		Appelez-nous	-
26	W10142363		Panel Control (white)		Appelez-nous	-
27	8271418		Bracket, Control				$ 57.15
28	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
29	3405152		Switch, Wrinkle Gaurd				$ 131.07
30	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 7.76
31	8299878		Harness, Wiring		Appelez-nous	-
32	8539893		Wire, Jumper (temperature)   (Replaces: 3396029)				$ 19.78
33	3347243		Connector		Appelez-nous	-
34	W10110048		Timer Knob, Assembly (white)		Appelez-nous	-
34	W10112608		Timer Knob Assembly (biscuit)		Appelez-nous	-
35	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
36	3936144		Connector				$ 21.22

    View Diagram in Separate Window       Print Part List
