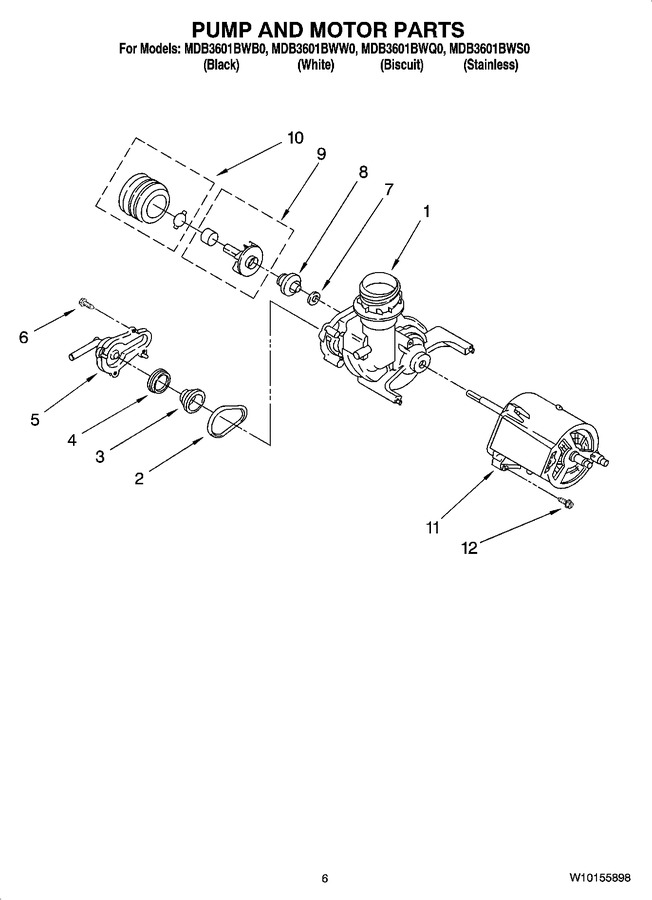

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3369011 | Housing Assembly (Replaces: 3369011) |
|
$ 134.41 | |||||
| 2 | 3369031 | Seal, Drain Cover |
|
$ 9.42 | |||||
| 3 | 8563504 | Diaphragm |
|
$ 5.84 | |||||
| 4 | 3369029 | Ring, Diaphragm |
|
$ 7.04 | |||||
| 5 | 3369030 | Cover, Drain Valve |
|
$ 24.55 | |||||
| 6 | WP3368921 | Screw (4) (Replaces: 3368921) |
|
Immediately | $ 7.13 | ||||
| 7 | 3369020 | Seal Seat |
|
$ 7.86 | |||||
| 8 | WP3385557 | Seal Head (Replaces: 3385557) |
|
$ 102.18 | |||||
| 9 | 4386996A | Impeller & Bearing Assembly (Replaces: 3369013) |
|
Immediately | $ 118.46 | ||||
| 10 | WP3369012 | Disk & Mount Assembly (Replaces: 3369012) |
|
$ 92.79 | |||||
| 11 | 8283457 | Motor |
|
$ 145.18 | |||||
| 12 | 3368922 | Screw (3) |
|
- |
