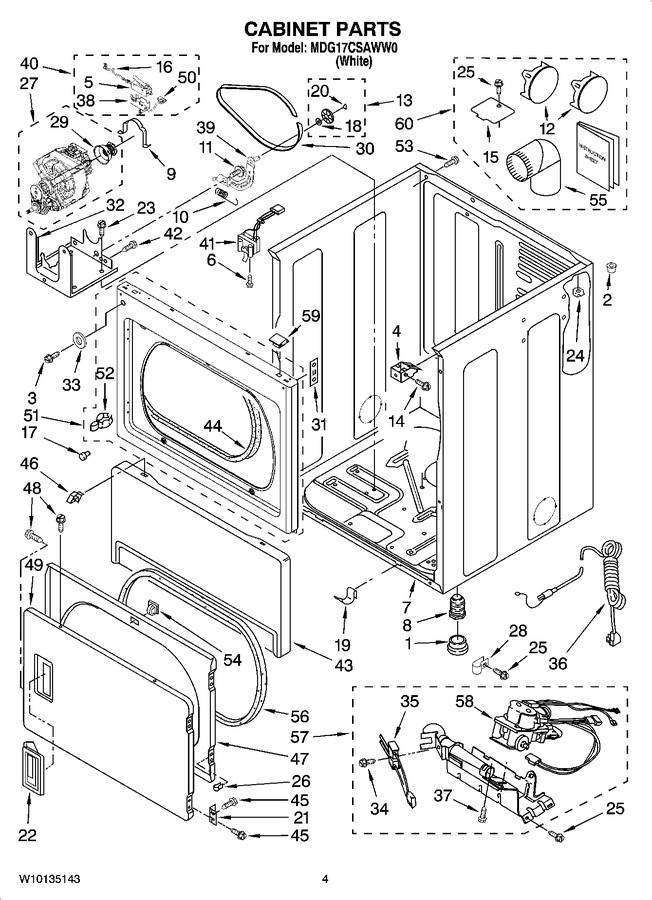

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.82
2	356674		Cone-wedge				$ 33.19
3	WP3400077		Screw, 10-16 X 1/2   (Replaces: 3400077)				$ 6.94
4	3391846		Clip, Front Panel (2)				$ 21.15
5	WP8564010		Switch, Broken Belt   (Replaces: 8564010)				$ 99.15
6	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
7	W11417441		Cabinet   (Replaces: 8310656)				$ 419.21
8	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
8	49621		Foot, Dryer (plastic)   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	681615		Screw, 10-16 X 1   (Replaces: 3391915)				$ 13.88
15	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.96
16	W10167613		Wire, Belt Switch		Appelez-nous	-
17	693152		Bumper				$ 10.96
18	WP233520		Washer, Thurst   (Replaces: 233520)			Immediately	$ 7.96
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.24
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 81.41
22	3389522		Handle, Door				$ 77.90
23	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 7.85
24	WP90406		Cage Nut, 5/16-18   (Replaces: 90406)				$ 8.14
25	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W11234001		Motor Assembly (60 Hz.)   (Replaces: W10139766)			Immediately	$ 413.21
28	3387561		Clamp, Pipe		Appelez-nous	-
29	WP8066184		Pulley 60 Hz   (Replaces: 3389627)			Immediately	$ 51.02
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.11
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 125.84
33	W11089212		Washer   (Replaces: 3392186)				$ 9.67
34	WPW10366705		Screw, 8-32 X 5/8   (Replaces: 3393909)				$ 7.50
35	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
36	W11628810		Cord, Power   (Replaces: 3401401)				$ 97.05
37	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 7.19
38	8564011		Bracket-switch				$ 18.17
39	WPW10344192		Bracket, Idler   (Replaces: W10141380)			Immediately	$ 90.07
40	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 26.40
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 55.64
42	777849		Screw, 6-20 X 1.00   (Replaces: W10002600)				$ 7.01
43	WP3406797		Panel, Toe (includes Illus. 17)   (Replaces: 697215)				$ 238.33
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door, Rear   (Replaces: 3392563)				$ 287.02
48	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.19
49	W11663440		Door, Front   (Replaces: 3387872)				$ 259.37
50	8539892		Wire, Jumper		Appelez-nous	-
51	3393081		Lower Front Panel		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	W10850756		Screw, Ground (10-32 X 1/2)   (Replaces: 8533974)				$ 7.76
54	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
55	279731		4`` - 90 Elbow		Appelez-nous	-
56	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
57	W11676916		Burner Assembly 60 Hz. (refer To Pages 8 & 9 For Further Breakdown)   (Replaces: W10135231)				$ 251.18
58	WPW10141728		Valve Gas 60 Hz. (complete)   (Replaces: W10141728)				$ 342.62
59	WP345670		Lock, Top   (Replaces: 345670)			Immediately	$ 7.70
60	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 76.65
