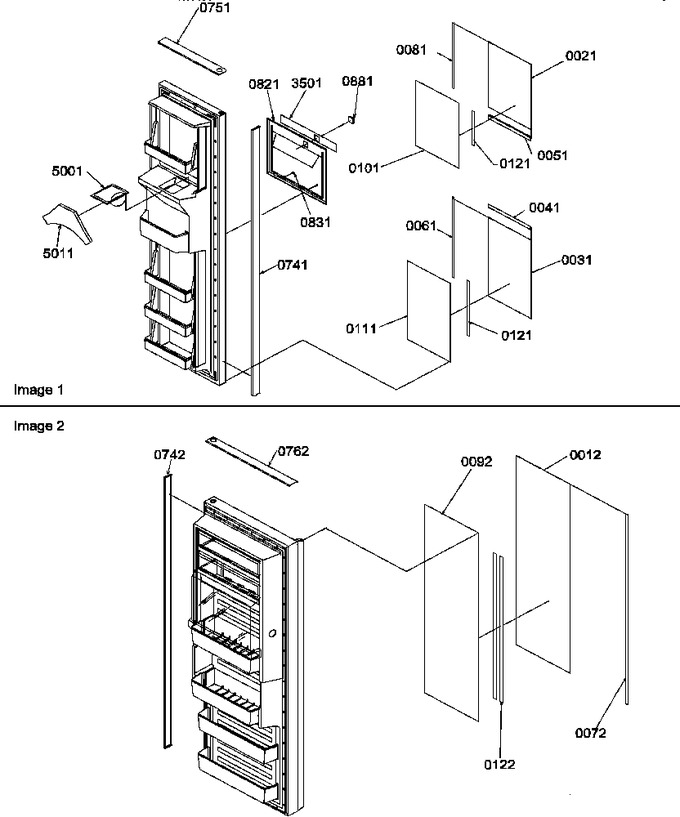

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10096959		Panel-white Yel		Appelez-nous	-
21	10096971		Panel, Up Frz (white)		Appelez-nous	-
31	10096972		Panel, Lw Frz (white)		Appelez-nous	-
41	B8391255		Ret, Facade (white)		Appelez-nous	-
51	B8391253		Retainer-w Facade		Appelez-nous	-
61	B5623472		Retainer, Deco Pnl		Appelez-nous	-
72	B5623471		Retainer, Deco Pnl		Appelez-nous	-
81	B5623490		Ret, Dec Pnl (white)		Appelez-nous	-
92	10234618		Spacer, Pnl Ref Dr		Appelez-nous	-
101	10234624		Spacer, Frz Up Pnl		Appelez-nous	-
111	10234625		Spacer, Frz Lw Pnl		Appelez-nous	-
121	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
122	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
741	10494517		Trim, Vert		Appelez-nous	-
742	10494517		Trim, Vert		Appelez-nous	-
751	10875902		Trim, Frz Top (white)		Appelez-nous	-
762	10875901		Trim, Ref Top (white)		Appelez-nous	-
821	10986101		Facade-w Disp		Appelez-nous	-
831	M0219614		Screw K		Appelez-nous	-
881	12043806		Cap-white Switch		Appelez-nous	-
3501	10984610		Insert-w Facade		Appelez-nous	-
5001	10504101		Chute, Ice		Appelez-nous	-
5011	12044501		Gasket-ice Chute		Appelez-nous	-
