SELECT A DIAGRAM

01 - Top And Console Parts

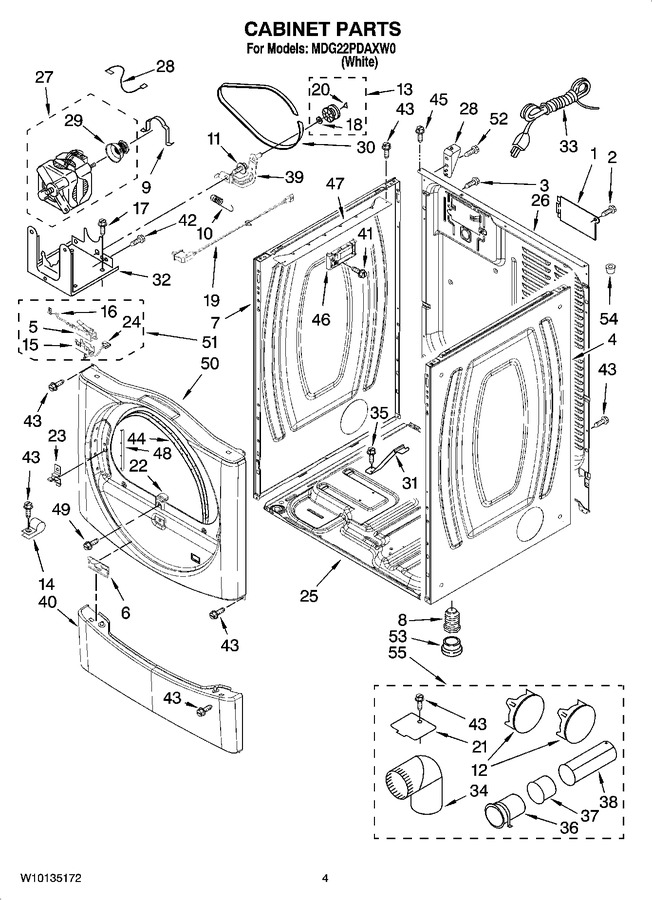

02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10135231 Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
3	W10850756		Screw, Ground   (Replaces: 8533974)				$ 7.76
4	W10542714		Panel, Side (r.h.)   (Replaces: 8565048)				$ 333.89
5	WP8564010		Switch, Broken Belt   (Replaces: 8564010)				$ 99.15
6	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 21.11
7	W10542714		Panel, Side (l.h.)   (Replaces: 8565054)				$ 333.89
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
8	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	8564011		Bracket-switch				$ 18.17
16	W10167613		Wire, Belt Switch		Appelez-nous	-
17	WP681414		Screw, 8-18 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 7.96
19	8574875		Assembly, Door Switch				$ 125.92
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 8.96
22	8565083		Ramp, Door		Appelez-nous	-
23	WP8565122		Strike, Door (1)   (Replaces: 8565122)			Immediately	$ 8.65
24	8539892		Wire-motor To-belt-switch		Appelez-nous	-
25	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 347.96
26	8565059		Panel, Rear				$ 244.90
27	W11234001		Motor Assembly (60 Hz.)   (Replaces: W10139766)			Immediately	$ 413.21
28	W10137398		Stop - Top Panel		Appelez-nous	-
29	W10837625		Pulley, 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.16
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 125.84
33	W11628810		Cord, Power   (Replaces: 3401401)				$ 97.05
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 26.82
35	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 91.38
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 78.95
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 88.80
39	WPW10344192		Idler Bracket   (Replaces: W10141380)			Immediately	$ 90.07
40	WP8540621		Toe, Panel   (Replaces: 8540621)				$ 180.36
41	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
42	777849		Screw, 6-20 X 1.00   (Replaces: W10002600)				$ 7.01
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
46	W10166297		Control Board		Appelez-nous	-
47	WP8563727		Control Bracket   (Replaces: 8563727)				$ 171.13
48	8565043		Plug-strip Front Panel				$ 92.66
49	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
50	WPW10117421		Front Panel (includes Illus. 44)   (Replaces: W10117421)				$ 283.08
51	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 26.40
52	WP489442		Screw, 8-18 X 1/16   (Replaces: W10015090)			Immediately	$ 10.94
53	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.82
54	356674		Cone-wedge				$ 33.19
55	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 76.65

    View Diagram in Separate Window       Print Part List
