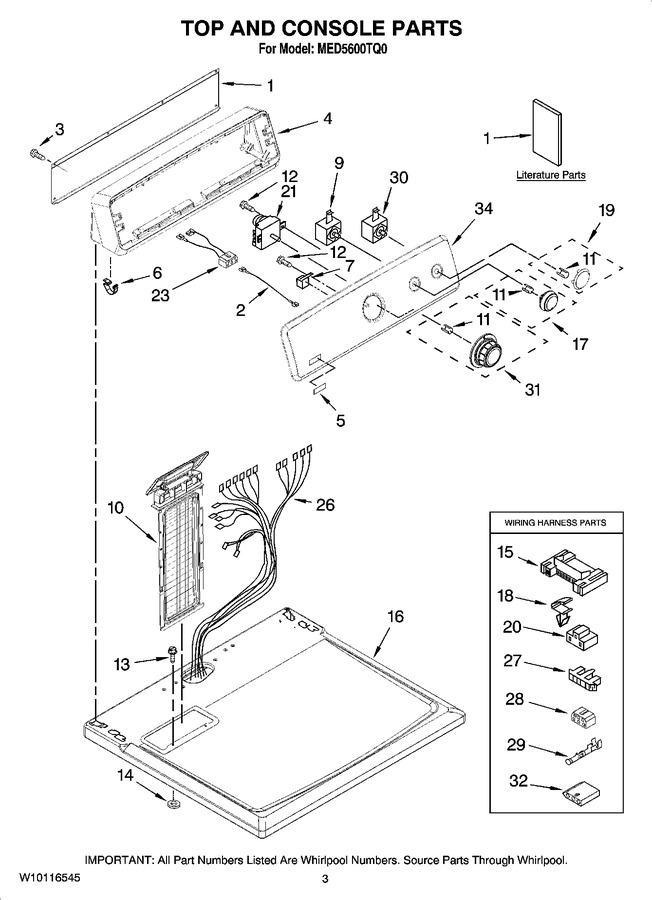

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10112576		Panel, Rear Console				$ 61.99
2	W10113080		Wire, Jumper (tan)		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	8579716		Shell, Console (includes Illus:6)		Appelez-nous	-
5	W10203949		Badge Assembly   (Replaces: W10112569)				$ 72.04
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
9	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
10	W11778253		Screen, Lint (white)   (Replaces: 8565972)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	237446		Washer (top/chute)		Appelez-nous	-
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8579698		Top (white)		Appelez-nous	-
17	WPW10110029		Knob, Control (1) (white)   (Replaces: W10110029)				$ 55.41
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	WPW10110029		Knob, Push-to-start (white)   (Replaces: W10110032)				$ 55.41
20	3401144		Connector, (pts Relay)				$ 12.81
21	WP3979617		Timer, 60 Hz.   (Replaces: 3979617)			Immediately	$ 385.79
23	W10110861		Wire, Jumper (temperature)		Appelez-nous	-
26	W10110864		Harness, Wiring		Appelez-nous	-
27	3397269		Connector, Timer				$ 25.55
28	3347243		Connector 6-circuit		Appelez-nous	-
29	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
30	WPW10117655		Switch, Push-to-start   (Replaces: W10117655)			Immediately	$ 85.60
31	W10110030		Timer Knob Assembly (white)				$ 26.39
32	3936144		Connector				$ 21.22
34	W10086704		Panel, Control (white (includes Illus:5))		Appelez-nous	-
