01 - Cabinet Parts

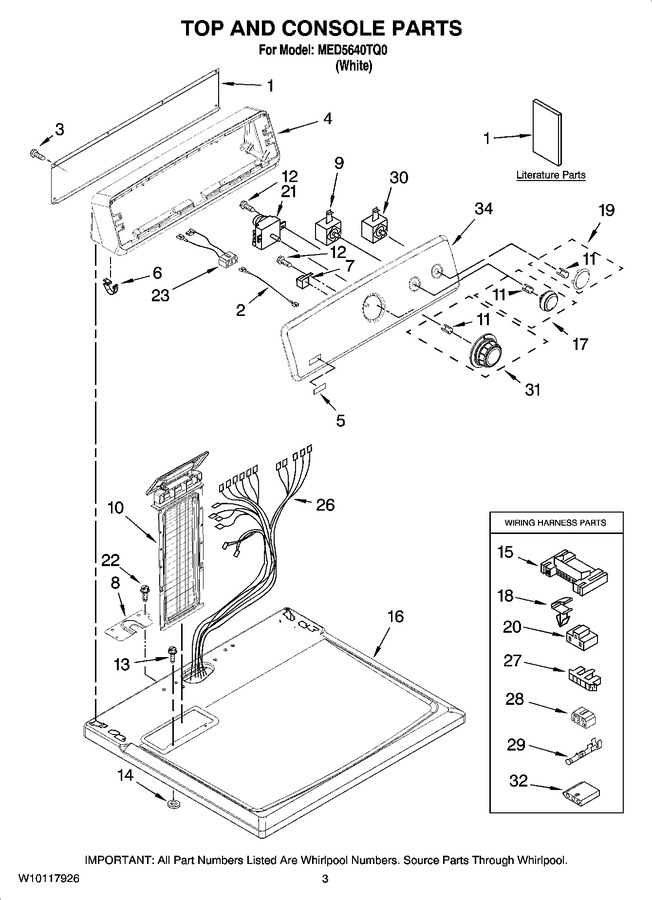

02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10112576 | Panel, Rear Console |
|
$ 61.99 | |||||
| 2 | W10113080 | Wire, Jumper (tan) |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 8579716 | Shell, Console (includes Illus:6) |
|
- | |||||
| 5 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 68.61 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 8 | 8565981 | Bracket, Harness |
|
- | |||||
| 9 | WP3399640 | Switch, Temperature (Replaces: 3399640) |
|
$ 129.76 | |||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: 8565972) |
|
Immediately | $ 52.03 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 237446 | Washer (top/chute) |
|
- | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 16 | 8579698 | Top (white) |
|
- | |||||
| 17 | WPW10110029 | Knob, Control (1) (white) (Replaces: W10110029) |
|
$ 52.77 | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 19 | WPW10110029 | Knob, Push-to-start (white) (Replaces: W10110032) |
|
$ 52.77 | |||||
| 20 | 3401144 | Connector, (pts Relay) |
|
$ 12.20 | |||||
| 21 | WP8578906 | Timer, 60 Hz. (Replaces: 8578906) |
|
$ 364.83 | |||||
| 22 | WP33001882 | Screw, 8-18 X 7/16 (Replaces: 337686) |
|
$ 79.72 | |||||
| 23 | W10113107 | Wire, Jumper (temperature) |
|
- | |||||
| 26 | W10110864 | Harness, Wiring |
|
- | |||||
| 27 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 28 | 3347243 | Connector 6-circuit |
|
- | |||||
| 29 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 30 | WPW10117655 | Switch, Push-to-start (Replaces: W10117655) |
|
Immediately | $ 85.60 | ||||
| 31 | W10110030 | Timer Knob Assembly (white) |
|
$ 26.39 | |||||
| 32 | 3936144 | Connector |
|
$ 20.21 | |||||
| 34 | W10086708 | Panel, Control (white (includes Illus: No. 5.)) |
|
- |
