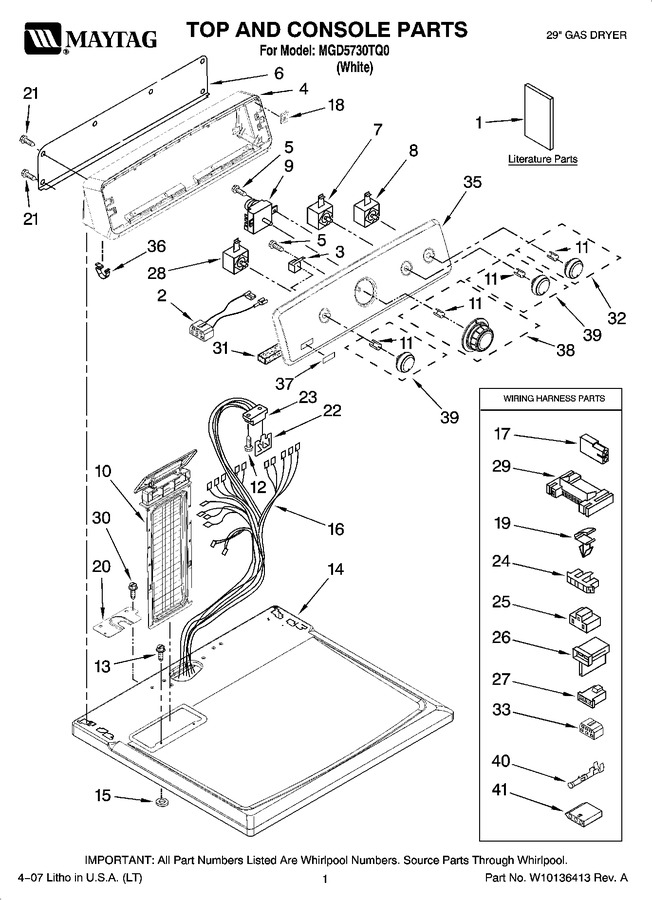

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10088775		Use & Care Guide		Appelez-nous	-
1	W10119084		Wiring Diagram		Appelez-nous	-
1	W10089171		Sheet, Cycle Feature		Appelez-nous	-
2	W10119726		Wire, Jumper (buzzer On/off)		Appelez-nous	-
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	8579716		Shell, Console (includes Item: 36)		Appelez-nous	-
5	WP90767		Screw, 8-18 X 5/8   (Replaces: 8533971)			Immediately	$ 8.25
6	W10112576		Panel, Rear Console				$ 61.99
7	8530169		Switch, Temperature				$ 147.06
8	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
9	WP8566184		Timer Assembly (60 Hz.)   (Replaces: 8566184)			Immediately	$ 277.09
10	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	8579698		Top		Appelez-nous	-
15	237446		Washer (top/chute)		Appelez-nous	-
16	W10120796		Harness, Wiring		Appelez-nous	-
17	717252		Plug, 2-way		Appelez-nous	-
18	W10123148		Nut, U-type		Appelez-nous	-
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
20	8565981		Bracket, Harness		Appelez-nous	-
21	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
22	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 329.93
23	3391885		Connector, Edge				$ 90.72
24	3397269		Connector, Timer				$ 25.55
25	3401144		Connector, (pts Relay)				$ 12.81
26	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
27	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
28	WP3405156		Switch Rotary (twist Mount)   (Replaces: 3405156)				$ 152.79
29	3395683		Connector (motor)			Immediately	$ 54.45
30	WP33001882		Screw, 8-18 X 3/4   (Replaces: 337686)				$ 83.71
31	W10112267		Foam-seal Console Bracket				$ 97.53
32	W10110031		Knob, Push-to-start		Appelez-nous	-
33	3347243		Connector 6-circuit		Appelez-nous	-
35	W10086727		Panel, Control (includes: Item: & 37)		Appelez-nous	-
36	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
37	W10203949		Badge Assembly   (Replaces: W10112569)				$ 72.04
38	W10110030		Timer Knob Assembly				$ 26.39
39	WPW10110029		Knob, Control (2)   (Replaces: W10110029)				$ 55.41
40	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
41	3936144		Connector				$ 21.22
