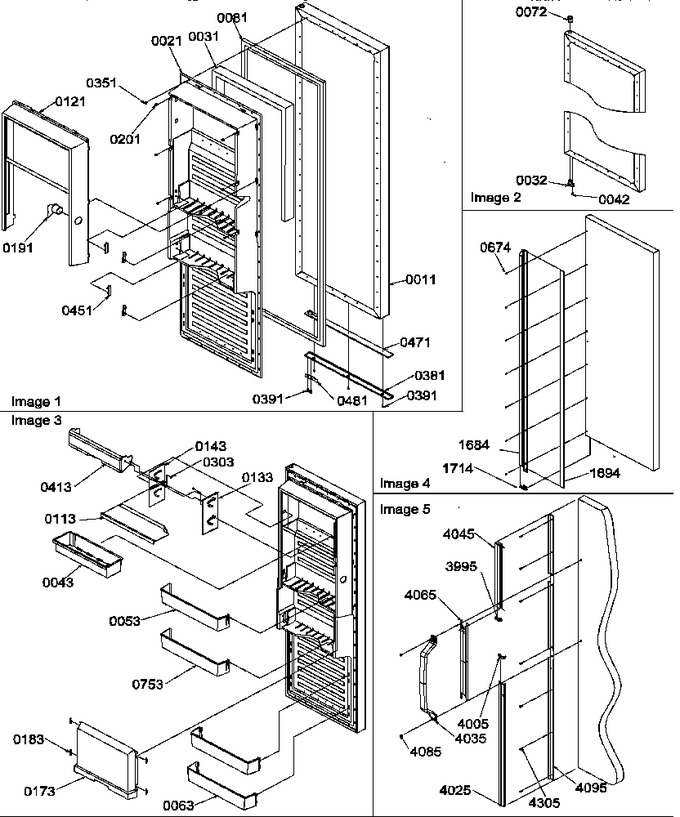

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881305E		Assy Ref Dr Fm Sxs		Appelez-nous	-
21	10861502		Liner-ref Dr		Appelez-nous	-
31	B0523590		Insul., Batt		Appelez-nous	-
32	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
43	10883901		Bucket-beverage		Appelez-nous	-
53	10520410		Shelf, Chiller		Appelez-nous	-
63	10521814		Shelf-ref Door		Appelez-nous	-
72	10961002		Bushing, Door (blk)		Appelez-nous	-
81	10359703		Gasket, Door (e Ref)		Appelez-nous	-
113	10883801		Shelf, Dairy		Appelez-nous	-
121	10519004		Frame-chiller		Appelez-nous	-
133	12102905		Track, Dairy Door		Appelez-nous	-
143	12102906		Track, Dairy Door		Appelez-nous	-
173	10519208		Door, Chiller		Appelez-nous	-
183	10162101		Glide-igloo Door		Appelez-nous	-
191	12033201		Tunnel-air		Appelez-nous	-
201	10165101		Clip-tubular		Appelez-nous	-
303	M0500706		Seal-o Ring		Appelez-nous	-
351	M0219730		Screw				$ 7.65
381	10602612		Trim, E Ref Btm		Appelez-nous	-
391	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
413	12103001		Door-dairy		Appelez-nous	-
451	10202001		Clip, Retainer		Appelez-nous	-
471	10494603		Support Ref Trim (btm)		Appelez-nous	-
481	C8972403		Stop, Door (blk)		Appelez-nous	-
753	10520412		Shelf, Chiller		Appelez-nous	-
3995	10953116		Insert, Trim (black)		Appelez-nous	-
4005	10953115		Insert, Trim (black)		Appelez-nous	-
4025	10810512		Trim, Bottom Door E		Appelez-nous	-
4035	10809003		Kit, Sxs Hndl (e)		Appelez-nous	-
4045	10810312		Trim-e Top Ref Dr		Appelez-nous	-
4065	10810403		Trim- E Ctr Dr		Appelez-nous	-
4085	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
4095	10852214		Retainer-ref Trim		Appelez-nous	-
4305	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
