SELECT A DIAGRAM

01 - Top And Console Parts

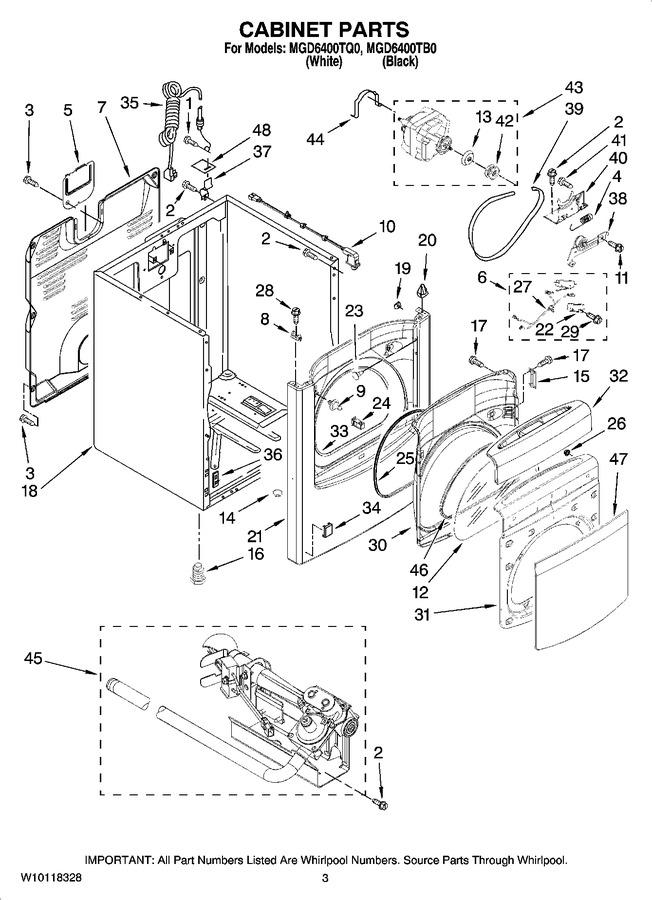

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557890 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, Ground   (Replaces: 8533974)				$ 8.20
2	WP3390631		Screw, 10-16 X 1/2   (Replaces: 3390631)				$ 8.25
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
5	W11736322		Cover, Terminal Block   (Replaces: 8558833)		Appelez-nous	-
6	WP8566208		Assembly, Switch   (Replaces: 8566208)				$ 104.98
7	8558830		Panel, Rear				$ 139.44
8	WP8568303		Locator, Snap Down   (Replaces: 8568303)				$ 7.94
9	W10295405		Strike, Door   (Replaces: 8572983)				$ 115.09
10	W10702726		Door Switch Assembly   (Replaces: 3978977)				$ 107.79
11	WP3389420		Retainer-idler 1/4-20 X 1/16   (Replaces: 3389420)				$ 8.62
12	8565015		Glass, Inner Door				$ 129.06
13	8578538		Belt Restrainer		Appelez-nous	-
14	8578560		Hole Plug				$ 95.94
15	W10050090		Assembly, Hinge & Pin (black)		Appelez-nous	-
15	WP8565018		Assembly, Hinge & Pin (white)   (Replaces: 8565018)				$ 115.34
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
17	WP488627		Screw, 8-18 3/64   (Replaces: 342055)				$ 8.11
18	W10045390		Cabinet (black)		Appelez-nous	-
18	8557569		Cabinet (white)		Appelez-nous	-
19	W10007520		Clip, Ground (2)				$ 30.94
20	WP8576625		Lock, Front Top (2)   (Replaces: 8576625)				$ 7.60
21	8565033		Panel, Front (includes Illus. 34) (white)		Appelez-nous	-
21	8565036		Panel, Front (includes Illus. 34) (black)		Appelez-nous	-
22	8564011		Bracket-switch				$ 19.08
23	WP3404413		Plug-hole (white)   (Replaces: 3404413)			Immediately	$ 8.35
23	3404416		Plug-hole (black)				$ 33.25
24	WPW10111905		Assembly, Door Catch   (Replaces: 8572982)			Immediately	$ 7.59
25	W10239307		Seal, Door   (Replaces: 8575027)				$ 141.27
26	WP308499		Pal Nut (4)   (Replaces: 308499)				$ 7.30
27	8539897		Jumper, (belt Switch)		Appelez-nous	-
28	W10100830		Screw, 10-16 X 3/64		Appelez-nous	-
29	8539897		Screw		Appelez-nous	-
30	8565037		Door Inner (white)				$ 83.94
30	8575052		Door Inner (black)		Appelez-nous	-
31	8575025		Door Outer (black)		Appelez-nous	-
31	8565042		Door Outer (white)		Appelez-nous	-
32	W10050100		Handle, Door (black)		Appelez-nous	-
32	W10050120		Handle, Door (white)		Appelez-nous	-
33	W10044490		Seal, Front Panel				$ 34.05
34	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 16.50
34	8573008		Plug, Front Panel (black)		Appelez-nous	-
35	W11222083		Power Cord   (Replaces: 344020)				$ 126.62
36	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 16.34
37	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
38	8547174V		Idler & Pulley Assembly   (Replaces: 8547174)			Immediately	$ 29.26
39	WP8547168		Belt, Drive   (Replaces: 8547168)			Immediately	$ 64.80
40	8547166		Base, Motor				$ 34.74
41	777849		Screw   (Replaces: W10002600)				$ 7.36
42	WP8066184		Pulley, 60 Hz   (Replaces: 8578565)			Immediately	$ 51.02
43	WPW10463866		Motor Assembly 60 Hz.   (Replaces: 8566152)				$ 356.49
44	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
45	8557890		Burner, Assembly 60 Hz (see Pages 7 & For Further Burner Breakdown)				$ 247.25
46	W10076060		Seal-window				$ 47.26
47	W10116398		Window Outer (white)		Appelez-nous	-
47	8575049		Window Outer (black)				$ 61.31
48	18849		Pad, Top Hinge				$ 21.15

    View Diagram in Separate Window       Print Part List
