Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8066209 Plug, Strip Appelez-nous -
2 W10111141 Door Hinge Assembly Appelez-nous -
3 342043 Screw, 10-32 X 3/8 Appelez-nous -
4 W10850046 Screw, 8-18 X 5/8   (Replaces: 9742177) In-Stock Immediately $ 7.55

5 8529539 Bracket, Handle Appelez-nous -
6 8541011 Pad, Door Handle Appelez-nous -
7 W10100381 Handle, Door (white) Special Order $ 69.54

8 WP308685 Screw, 10-16 X 1/2   (Replaces: 3393008) In-Stock Immediately $ 7.87

9 W10100383 Door & Window Assembly (includes Illus. 6, 7, 13 & 14) (white) Appelez-nous -
10 8557501 Inner Door Assembly (includes Illus. 5, 8 15 & 20) Special Order $ 160.79

11 WP308685 Screw,10-16 X 1/2   (Replaces: 3357011) In-Stock Immediately $ 7.87

12 3400859 Screw, 8-18 X 7/32 Special Order $ 13.88

13 WP2004333 Nut, Push-on (2)   (Replaces: 8558182) Special Order $ 11.24

14 W10098820 Medallion Appelez-nous -
15 279570 Catch, Door Assembly (1)   (Replaces: 690081) In-Stock Immediately $ 8.89

16 W10017850 Screw, 10-24 X 3/64 Appelez-nous -
17 8566486 Cover-hinge, Rotating (white) Appelez-nous -
18 8547091 Clip, Trim Panel Appelez-nous -
19 8562596 Trim & Clip Assembly (white) Appelez-nous -
20 WP3389441 Catch, Door Assembly (1)   (Replaces: 3389441) Special Order $ 6.20

W10202939 Paint, Touch-up 1/2 Oz. (meteorite)   (Replaces: 4396603) Special Order $ 26.23

4392067 Kit, Dryer Repair   (Replaces: 80047) In-Stock Immediately $ 62.25

786020 Paint, Pressurized Spray (12 Oz.) (black) Appelez-nous -
W11224254 Kit, Dryer Vent Testing   (Replaces: 8522199) Special Order $ 12.34

8541503 Kit, Stack Assembly In-Stock Immediately $ 43.18

8529894 Kit, Hold Down Appelez-nous -
72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12


    View Diagram in Separate Window     Print Icon   Print Part List

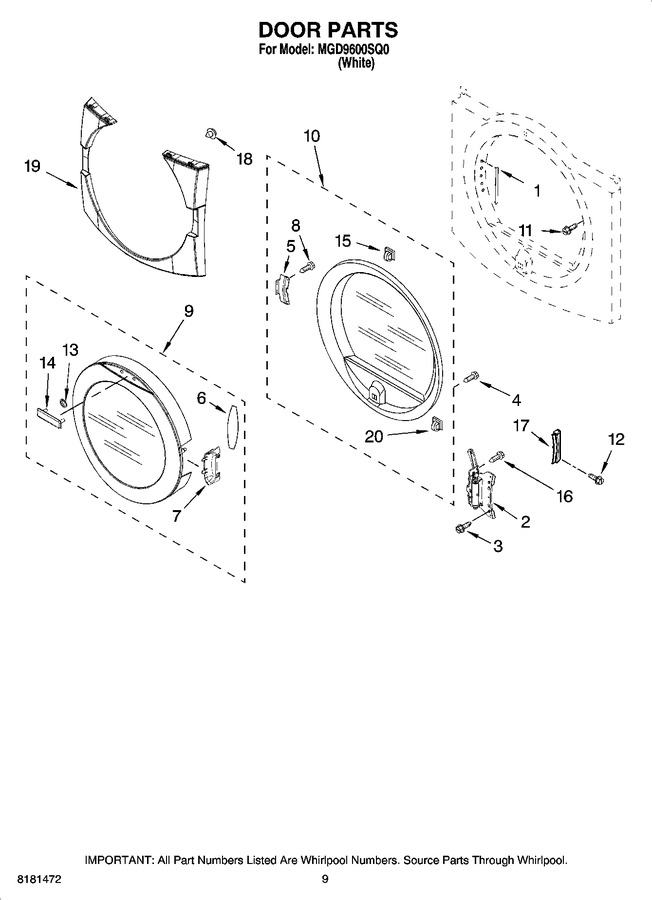

Diagram for MGD9600SQ0
