Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 M0213129 Screw Appelez-nous -
13 10809717 Shelf-split Glide Appelez-nous -
14 10809512 Shelf,full Glide(assy) Appelez-nous -
15 10968801 Seal-crisp Front Appelez-nous -
16 10968801 Seal-crisp Front Appelez-nous -
21 10809605 Shelf, Full Stat Appelez-nous -
22 10992304 Rack, Utility Appelez-nous -
23 10875101 Stop, Shelf Appelez-nous -
24 10875101 Stop, Shelf Appelez-nous -
25 10882701 Band, Crisper Appelez-nous -
26 10882701 Band, Crisper Appelez-nous -
31 10784001 Sleeve,deli Appelez-nous -
32 10436404 Lid, Utility Special Order $ 60.85

35 10852501 Slide, Crisper/deli Appelez-nous -
36 10852501 Slide, Crisper/deli Appelez-nous -
41 10872701 Gasket, Deli Appelez-nous -
42 10423129 Bin-utility Appelez-nous -
46 Y10370066 Glass, Shelf Appelez-nous -
51 10872601 Manifold, Deli Appelez-nous -
52 10436506 Tray, Egg Special Order $ 8.28

61 10852501 Slide, Crisper/deli Appelez-nous -
65 10782901 Frame,crisper Appelez-nous -
66 10782901 Frame,crisper Appelez-nous -
71 10986401 Band, Deli Appelez-nous -
72 10310901 Tray, Butter Appelez-nous -
76 12113003 Trim-crisper Fr Appelez-nous -
81 10783803 Frame, Deli Appelez-nous -
82 10169009 Snugger, Shelf Appelez-nous -
85 10481001 Roller, Pan Special Order $ 10.99

86 10481001 Roller, Pan Special Order $ 10.99

95 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

96 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

102 10237602 Retainer, Package Appelez-nous -
111 10876301 Director, Deli Appelez-nous -
121 10873802 Extr, Rear Deli Appelez-nous -
131 10784201 Pan, Deli Appelez-nous -
141 10481001 Roller, Pan Special Order $ 10.99

151 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

201 M0051701 Pad-bumper Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

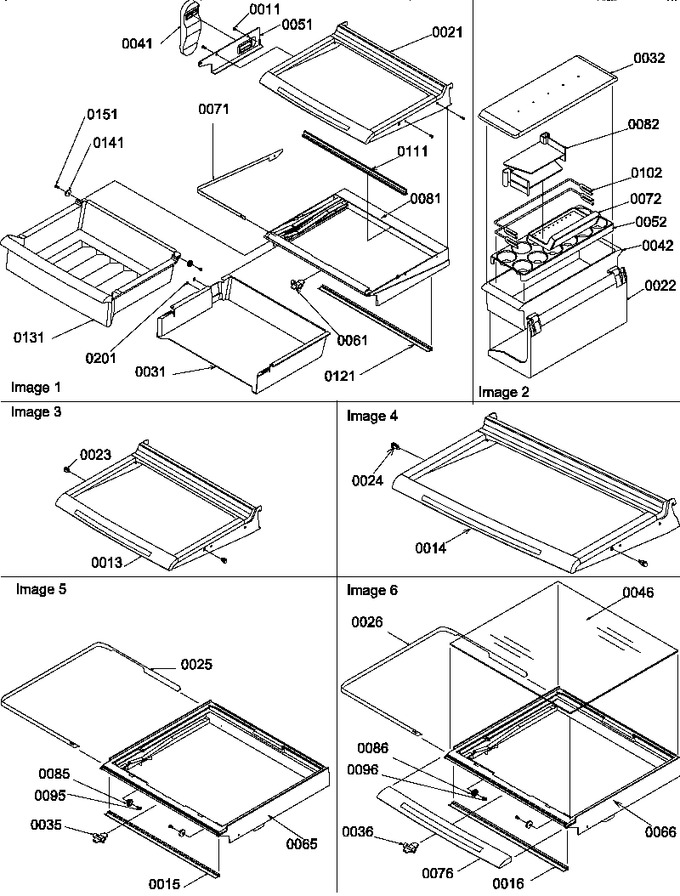

Diagram for SRD22VPW (BOM: P1190328W W)
