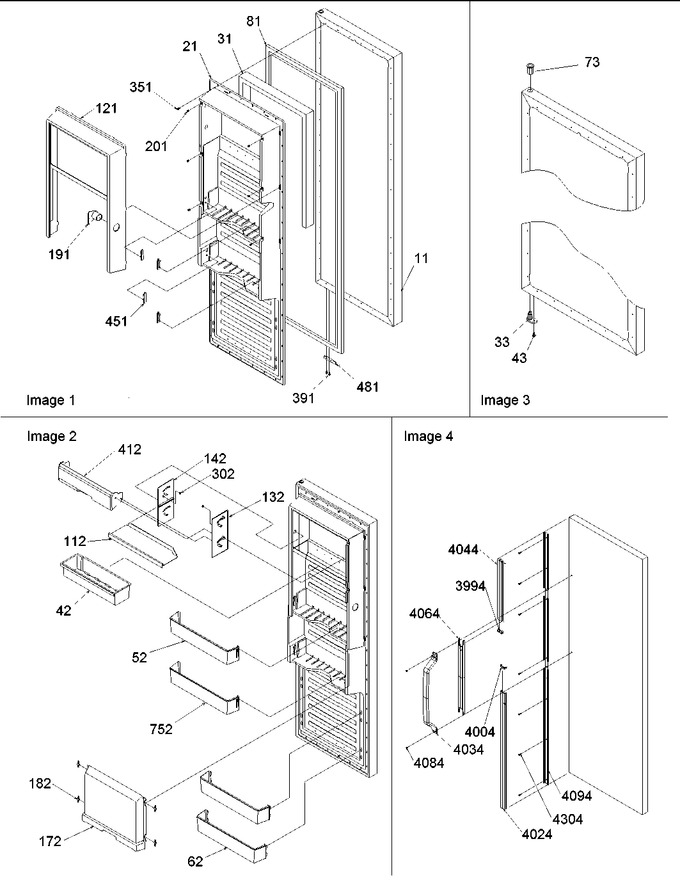

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10881305L | Ass`y, Ref Dr Foam |
|
- | |||||
| 21 | 10861502 | Liner-ref Dr |
|
- | |||||
| 31 | B0523590 | Insul., Batt |
|
- | |||||
| 33 | R0181181 | Closure, Door (blk) (Replaces: 12113204) |
|
Immediately | $ 7.55 | ||||
| 42 | 10883901 | Bucket-beverage |
|
- | |||||
| 52 | 10520410 | Shelf, Chiller |
|
- | |||||
| 62 | 10521814 | Shelf-ref Door |
|
- | |||||
| 73 | 10961001 | Bushing, Door (wht) |
|
- | |||||
| 81 | 10359701 | Gasket, Door (w Ref) |
|
- | |||||
| 112 | 10883801 | Shelf, Dairy |
|
- | |||||
| 121 | 10519004 | Frame-chiller |
|
- | |||||
| 132 | 12102905 | Track, Dairy Door |
|
- | |||||
| 142 | 12102906 | Track, Dairy Door |
|
- | |||||
| 172 | 10519208 | Door, Chiller |
|
- | |||||
| 182 | 10162101 | Glide-igloo Door |
|
- | |||||
| 191 | 12033201 | Tunnel-air |
|
- | |||||
| 201 | 10165101 | Clip-tubular |
|
- | |||||
| 302 | M0500706 | Seal-o Ring |
|
- | |||||
| 351 | M0219730 | Screw |
|
$ 7.65 | |||||
| 391 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 412 | 12103001 | Door-dairy |
|
- | |||||
| 451 | 10202001 | Clip, Retainer |
|
- | |||||
| 481 | C8972406 | Stop, L Door |
|
- | |||||
| 752 | 10520412 | Shelf, Chiller |
|
- | |||||
| 3994 | 10953114 | Insert, Trim (almond) |
|
- | |||||
| 4004 | 10953113 | Insert, Door Trim |
|
- | |||||
| 4024 | 10810510 | Trim, Bot Ref Dr L |
|
- | |||||
| 4034 | 10809002 | Kit, Sxs Hndl (l) |
|
- | |||||
| 4044 | 10810310 | Trim-l Top Ref Dr |
|
- | |||||
| 4064 | 10810402 | Trim, L Ctr Door |
|
- | |||||
| 4084 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 10.58 | |||||
| 4094 | 10852214 | Retainer-ref Trim |
|
- | |||||
| 4304 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 |
