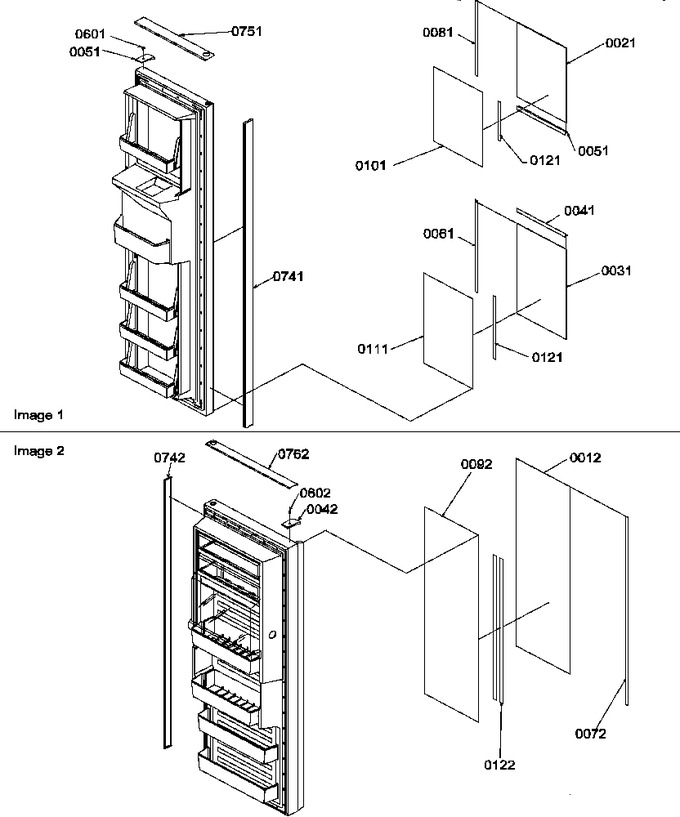

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10704720		Panel, Decorative(stainless)		Appelez-nous	-
21	10704721		Panel, Dec. (stainless)		Appelez-nous	-
31	10704710		Panel-stainless		Appelez-nous	-
41	B8391218		Retainer-dec Pan		Appelez-nous	-
42	10871111		Cap, Ref Handle Top (gray)		Appelez-nous	-
51	10871112		Cap-gy Fz Hndl Top		Appelez-nous	-
121	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
122	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-
601	M0213517		Screw K		Appelez-nous	-
602	M0213517		Screw K		Appelez-nous	-
741	10494522		Trim-stn Vertical		Appelez-nous	-
742	10494522		Trim-stn Vertical		Appelez-nous	-
751	10765214		Trim-stn Fz Top		Appelez-nous	-
762	10765216		Trim, Ref Top (stn)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
