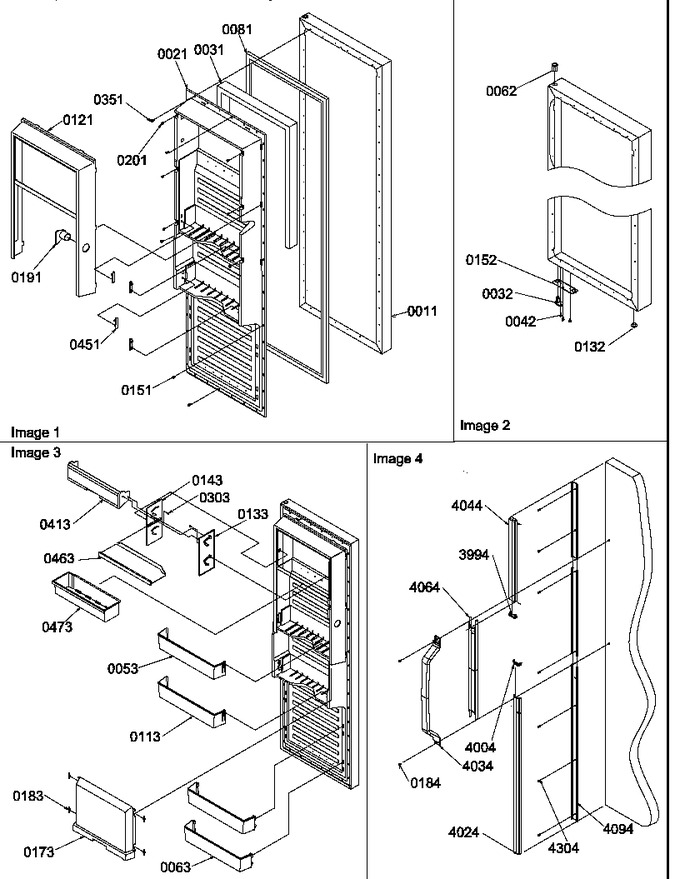

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10876105E | Assy, Ref Dr Fm(blk) |
|
- | |||||
| 21 | 10861401 | Liner-ref Dr |
|
- | |||||
| 31 | B0523563 | Insulation Ft. K |
|
- | |||||
| 32 | R0181181 | Closure, Door (blk) (Replaces: 12113204) |
|
Immediately | $ 7.55 | ||||
| 42 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 47 | M0500706 | Seal-o Ring |
|
- | |||||
| 53 | 10111007 | Bucket-igloo |
|
- | |||||
| 62 | 10961002 | Bushing, Door (blk) |
|
- | |||||
| 63 | 10521814 | Shelf-ref Door |
|
- | |||||
| 81 | 10359710 | Gasket, Door (e Ref) |
|
- | |||||
| 95 | M0219730 | Screw |
|
$ 7.65 | |||||
| 113 | 10520410 | Shelf, Chiller |
|
- | |||||
| 121 | 10154901 | Frame-igloo Dairy |
|
- | |||||
| 132 | M0310336 | Plug, Button (blk) |
|
- | |||||
| 133 | 12102909 | Track-dairy Door |
|
- | |||||
| 143 | 12102910 | Track-dairy Door |
|
- | |||||
| 151 | M0226705 | Screw, Shoulder |
|
- | |||||
| 152 | 10161805 | Stop-black Door |
|
- | |||||
| 154 | 10953116 | Insert, Trim (black) |
|
- | |||||
| 157 | 12103001 | Door-dairy |
|
- | |||||
| 164 | 10953115 | Insert, Trim (black) |
|
- | |||||
| 173 | 10111809 | Door, Igloo |
|
- | |||||
| 183 | 10162101 | Glide-igloo Door |
|
- | |||||
| 184 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 184 | 10810512 | Trim, Bottom Door E |
|
- | |||||
| 191 | 10165001 | Tunnel-air |
|
- | |||||
| 194 | 12139306 | Handle, Door (black) |
|
- | |||||
| 195 | 10202001 | Clip, Retainer |
|
- | |||||
| 201 | 10165101 | Clip-tubular |
|
- | |||||
| 204 | 10810312 | Trim-e Top Ref Dr |
|
- | |||||
| 207 | 10893201 | Shelf, Dairy |
|
- | |||||
| 208 | M0216517 | Screw |
|
- | |||||
| 217 | 10883902 | Bucket-beverage |
|
- | |||||
| 224 | 10810403 | Trim- E Ctr Dr |
|
- | |||||
| 254 | 10852214 | Retainer-ref Trim |
|
- |
