SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Drain System, Rollers, And Evap Assy


04 - Fz Door


05 - Fz Shelves And Light


06 - Ice & Water Cavity & Elec Brkt Assy


07 - Ice Bucket Auger And Ice Maker Parts


08 - Ice Maker/control Assy


09 - Machine Compartment


10 - Ref Door


11 - Ref/fz Shelves, Lights, And Hinges


12 - Shelving, Crisper Assy & Toe Grille

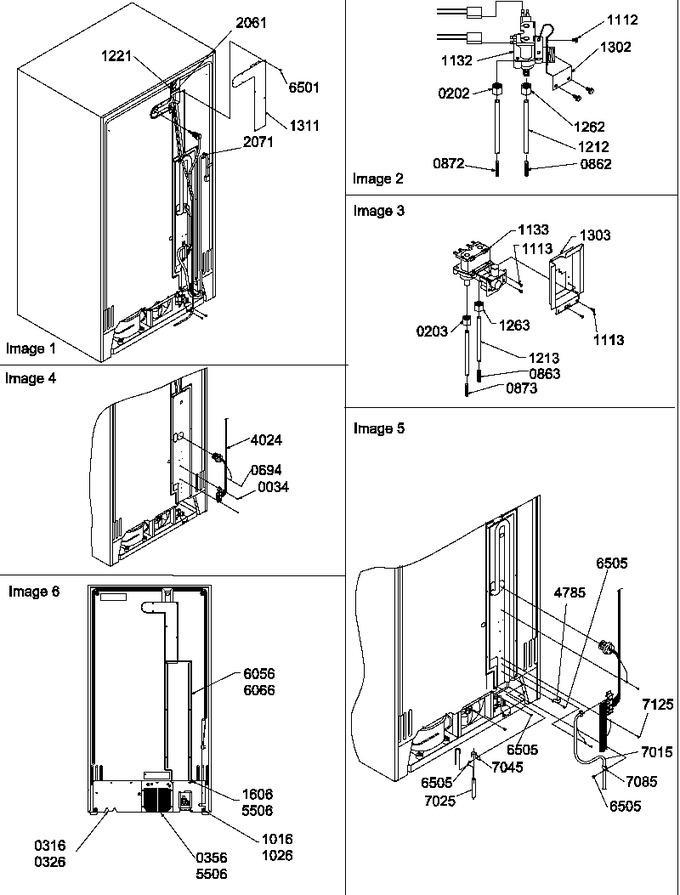

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	C8960601		Foot, Outer Case		Appelez-nous	-
13	A3189336		Gasket, Foam		Appelez-nous	-
23	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
23	12236001		Plate-water Valve		Appelez-nous	-
31	10178505		Cover - Wire		Appelez-nous	-
34	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
60	12041616		Assy, Mc Back		Appelez-nous	-
70	M0108001		Clamp, Tube		Appelez-nous	-
70	M0219704		Screw		Appelez-nous	-
89	681390		Screw   (Replaces: M0251015)				$ 13.71
100	12039903		Back, M.c.		Appelez-nous	-
103	10916505		Cord-power		Appelez-nous	-
105	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
109	WPW10247599		Valve, Water (dbl)   (Replaces: 12195504)				$ 229.27
113	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
130	M0227217		Screw, Sm		Appelez-nous	-
133	10547002		Clip, Drier		Appelez-nous	-
168	10178405		Cover, O.c.back		Appelez-nous	-
173	M0103904		Clamp, Speed		Appelez-nous	-
177	B5794201		Clamp		Appelez-nous	-
178	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
182	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
184	12026002		Harness, Cabinet		Appelez-nous	-
197	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
203	M0753003		Nut, Sleeve		Appelez-nous	-
213	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
248	WP489474		Screw   (Replaces: M0220634)			Immediately	$ 8.55
NI	10244904		Coupling				$ 25.37

    View Diagram in Separate Window       Print Part List
