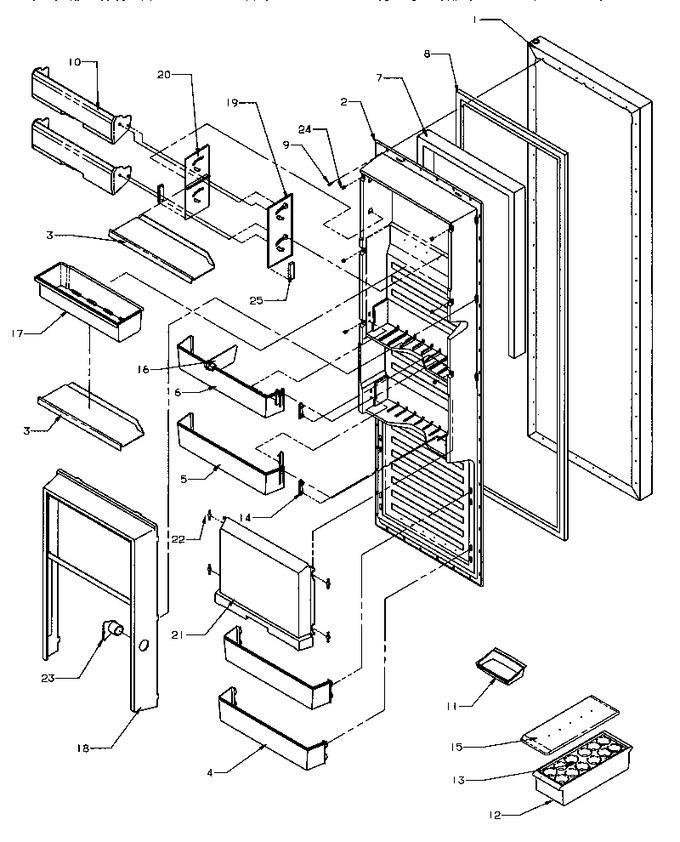

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10876101L		Assy, Ref Dr Fm (alm) Sxs		Appelez-nous	-
2	10861401		Liner-ref Dr		Appelez-nous	-
3	10893201		Shelf, Dairy		Appelez-nous	-
3	10520410		Shelf, Chiller		Appelez-nous	-
4	10521807		Shelf-ref Door		Appelez-nous	-
6	10111007		Bucket-igloo		Appelez-nous	-
7	B0523563		Insulation Ft. K		Appelez-nous	-
8	10359701		Gasket, Door (w Ref)		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	10883701		Door-dairy		Appelez-nous	-
11	10310901		Tray, Butter		Appelez-nous	-
12	10423128		Bin-utility		Appelez-nous	-
13	10436505		Tray, Egg		Appelez-nous	-
14	10202001		Clip, Retainer		Appelez-nous	-
15	10436404		Lid, Utility				$ 60.85
16	10169004		Snugger, Shelf		Appelez-nous	-
16	10169005		Snugger, Shelf		Appelez-nous	-
17	10883902		Bucket-beverage		Appelez-nous	-
18	10154901		Frame-igloo Dairy		Appelez-nous	-
19	10884001		Track, Dairy Dr		Appelez-nous	-
20	10884002		Track, Dairy Dr		Appelez-nous	-
21	10111809		Door, Igloo		Appelez-nous	-
22	10162101		Glide-igloo Door		Appelez-nous	-
23	10165001		Tunnel-air		Appelez-nous	-
24	10165101		Clip-tubular		Appelez-nous	-
25	B5759646		Gasket, Sealing		Appelez-nous	-
