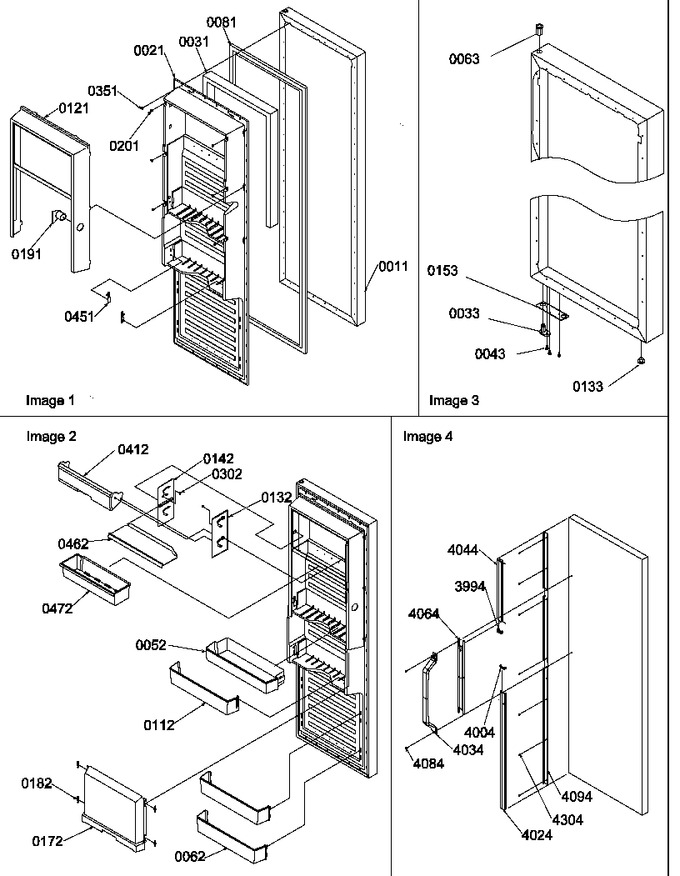

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10876105W | Assy, Ref Dr Fm (white) |
|
- | |||||
| 21 | 10861401 | Liner-ref Dr |
|
- | |||||
| 31 | B0523563 | Insulation Ft. K |
|
- | |||||
| 33 | R0181181 | Closure, Door (wht) (Replaces: 12113202) |
|
Immediately | $ 7.55 | ||||
| 43 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 52 | 10111007 | Bucket-igloo |
|
- | |||||
| 62 | 10521814 | Shelf-ref Door |
|
- | |||||
| 63 | 10961001 | Bushing, Door (wht) |
|
- | |||||
| 81 | 10359701 | Gasket, Door (w Ref) |
|
- | |||||
| 112 | 10520410 | Shelf, Chiller |
|
- | |||||
| 121 | 10154901 | Frame-igloo Dairy |
|
- | |||||
| 132 | 12102905 | Track, Dairy Door |
|
- | |||||
| 133 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 142 | 12102906 | Track, Dairy Door |
|
- | |||||
| 153 | 10161803 | Door Stop |
|
- | |||||
| 172 | 10111809 | Door, Igloo |
|
- | |||||
| 182 | 10162101 | Glide-igloo Door |
|
- | |||||
| 191 | 10165001 | Tunnel-air |
|
- | |||||
| 201 | 10165101 | Clip-tubular |
|
- | |||||
| 302 | M0500706 | Seal-o Ring |
|
- | |||||
| 351 | M0219730 | Screw |
|
$ 7.65 | |||||
| 412 | 12103001 | Door-dairy |
|
- | |||||
| 451 | 10202001 | Clip, Retainer |
|
- | |||||
| 462 | 10893201 | Shelf, Dairy |
|
- | |||||
| 472 | 10883902 | Bucket-beverage |
|
- | |||||
| 3994 | 10953112 | Insert, Trim(white) |
|
- | |||||
| 4004 | 10953111 | Insert, Trim(white) |
|
- | |||||
| 4024 | 10810508 | Trim, Bottom Door W Ref |
|
- | |||||
| 4034 | 10809007 | Kit, Sxs Hndl (w) |
|
- | |||||
| 4044 | 10810308 | Trim-w Top Ref Dr |
|
- | |||||
| 4064 | 10810401 | Trim-w Ctr Dr |
|
- | |||||
| 4084 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 10.58 | |||||
| 4094 | 10852214 | Retainer-ref Trim |
|
- | |||||
| 4304 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 |
