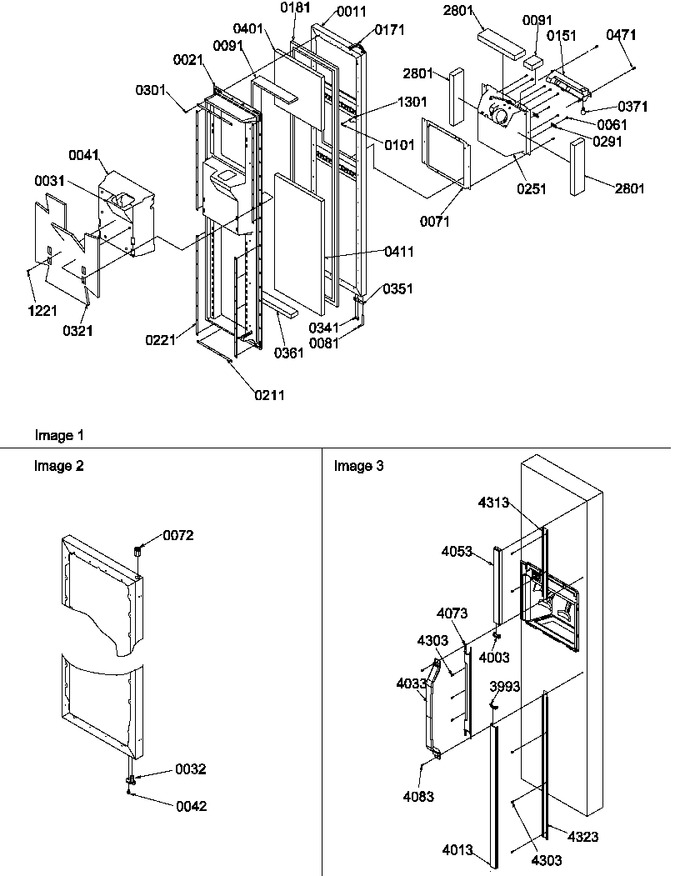

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10881206W | Ass`y, Frz Door(white) |
|
- | |||||
| 21 | 10860901 | Liner-i&w Fz Dr |
|
- | |||||
| 31 | 10895501 | Insul, Ice Chute |
|
- | |||||
| 32 | R0181181 | Closure-w Door (Replaces: 12113201) |
|
Immediately | $ 7.55 | ||||
| 41 | 10895401 | Insul., I/w Cavity |
|
- | |||||
| 42 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 61 | M0216517 | Screw |
|
- | |||||
| 71 | D7791003 | Gasket Cavity |
|
- | |||||
| 72 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 81 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 91 | B0523562 | Insul. By The Ft. |
|
- | |||||
| 101 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 7.30 | |||||
| 151 | Y00000000 | See Note Elec Brkt Assy -- (see Image 2 Pages 10 & 11 For Assy Breakdown) |
|
- | |||||
| 171 | 12053601 | Harness Frz Dr |
|
- | |||||
| 181 | 10359702 | Gasket (w Frz Dr) |
|
- | |||||
| 211 | C8982801 | Retainer, Door Liner |
|
- | |||||
| 221 | D7828601 | Retainer, Door Liner |
|
- | |||||
| 251 | Y00000000 | See Note W Cavity Assy -- (see Image 1 Pages 10 & 11 For Assy Breakdown) |
|
- | |||||
| 291 | C8992901 | Clip |
|
- | |||||
| 301 | M0219730 | Screw |
|
$ 7.65 | |||||
| 321 | 10941501 | Insul, Batt |
|
- | |||||
| 341 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 351 | C8972405 | Stop-w Door |
|
- | |||||
| 361 | 876370 | Insulation Bott (1= 1ft) (Replaces: B0523588) |
|
$ 243.14 | |||||
| 371 | M0360401 | Light Bulb (220/250) 6 Watt |
|
- | |||||
| 401 | 12016901 | Insul, Batt (ref. Door) |
|
- | |||||
| 411 | 12016902 | Insul, Batt (ref. Door) |
|
- | |||||
| 471 | M0216705 | Screw |
|
$ 5.81 | |||||
| 1221 | M0311601 | Plug, Button |
|
- | |||||
| 1301 | M0272803 | Lock Washer |
|
- | |||||
| 2801 | B0523596 | Insul. By The Ft. |
|
- | |||||
| 3993 | 10953112 | Insert, Trim(white) |
|
- | |||||
| 4003 | 10953111 | Insert, Trim(white) |
|
- | |||||
| 4013 | 10810507 | Trim, Bottom Door W Frz |
|
- | |||||
| 4033 | 10809007 | Kit, Sxs Hndl (w) |
|
- | |||||
| 4053 | 10810307 | Trim-w Top Fz Dr |
|
- | |||||
| 4073 | 10810601 | Trim, W Ctr I & W Dr |
|
- | |||||
| 4083 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 10.58 | |||||
| 4303 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 4313 | 10852212 | Ret-up Fz Trim |
|
- | |||||
| 4323 | 10852215 | Ret-lw Fz Trim |
|
- |
