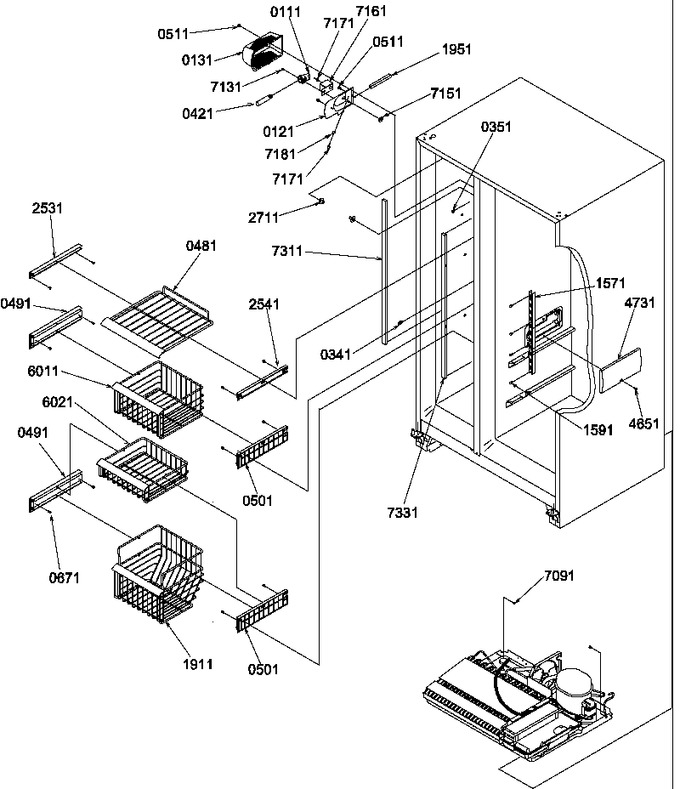

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
111	D7845102		Socket, Lamp		Appelez-nous	-
121	D7845204		Plate - Lt Socket		Appelez-nous	-
131	D7786602		Shield, Light		Appelez-nous	-
341	M0322202		Tie Wire		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
481	12012101		Shelf, Freezer Wire		Appelez-nous	-
491	12012901		Rail, L. Dbl Shelf		Appelez-nous	-
501	10991601		Rail- R Double		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
671	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1571	12373101		Ladder, Center		Appelez-nous	-
1591	M0238636		Screw-sm		Appelez-nous	-
1911	12011901		Basket, 11`` Freezer		Appelez-nous	-
1951	10250002		Cover, Wire		Appelez-nous	-
2531	12012801		Rail, L. Shelf		Appelez-nous	-
2541	10991401		Rail- R Shelf		Appelez-nous	-
2711	M0560005		Support		Appelez-nous	-
4651	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
4731	Y10270101		Cover-light		Appelez-nous	-
6011	12011801		Basket, 7`` Freezer		Appelez-nous	-
6021	12011701		Basket, 3`` Freezer		Appelez-nous	-
7091	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
7131	M0213129		Screw		Appelez-nous	-
7151	A4554813		Snap Bushing		Appelez-nous	-
7161	D7844902		Socket Cover		Appelez-nous	-
7171	A4539626		Pop Rivet		Appelez-nous	-
7181	M0320910		Term		Appelez-nous	-
7311	A3189346		Gasket		Appelez-nous	-
7331	A3189347		Gasket		Appelez-nous	-
