SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves, Crisper Assemblies & Acs


04 - Drain Systems, Rollers, And Evap Assy


05 - Fz Door


06 - Fz Shelves And Lights


07 - Ice Bucket Auger, Im & Im Parts


08 - Ice Maker/control Assy


09 - Ice-water Cav/elec Brkt Assy/toe Grille


10 - Machine Compartment


11 - Ref Door


12 - Ref/fz Shelves, Lights, And Hinges

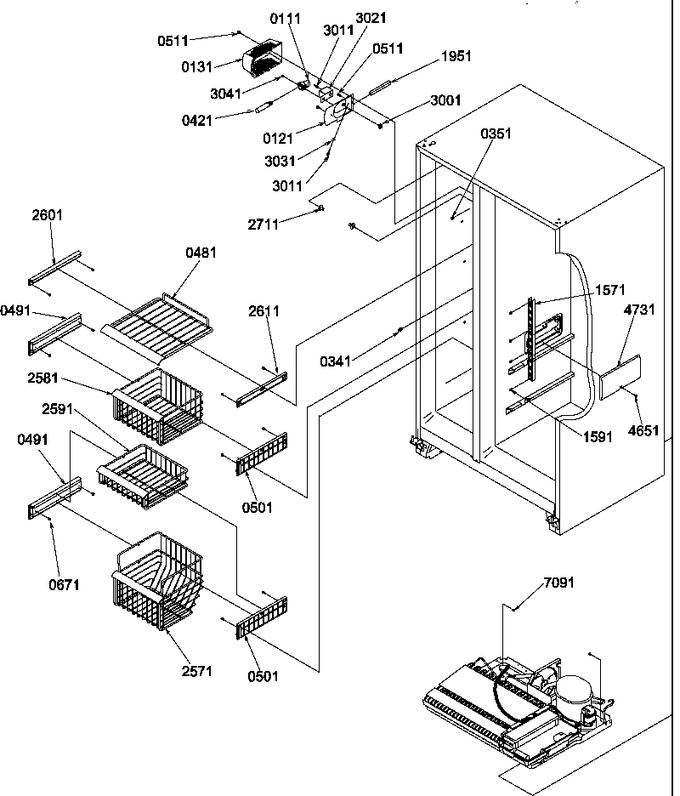

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
111	D7845102		Socket, Lamp		Appelez-nous	-
121	D7845204		Plate - Lt Socket		Appelez-nous	-
131	D7786602		Shield, Light		Appelez-nous	-
341	M0322202		Tie Wire		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
481	12012102		Shelf, Sld. Freezer		Appelez-nous	-
491	12013001		Rail, L. Dbl Shelf		Appelez-nous	-
501	10991801		Rail, R Double		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
671	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1571	12373101		Ladder, Center		Appelez-nous	-
1591	M0238636		Screw-sm		Appelez-nous	-
1951	10250002		Cover, Wire		Appelez-nous	-
2571	12012003		Basket, Freezer		Appelez-nous	-
2581	12011802		Basket, 7`` Freezer		Appelez-nous	-
2591	12011702		Basket, 3`` Freezer		Appelez-nous	-
2601	12012802		Rail, L. Shelf		Appelez-nous	-
2611	10991402		Rail, R Shelf		Appelez-nous	-
2711	M0560005		Support		Appelez-nous	-
3001	A4554813		Snap Bushing		Appelez-nous	-
3011	A4539626		Pop Rivet		Appelez-nous	-
3021	D7844902		Socket Cover		Appelez-nous	-
3031	M0320910		Term		Appelez-nous	-
3041	M0213129		Screw		Appelez-nous	-
4651	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
4731	Y10270101		Cover-light		Appelez-nous	-
7091	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06

    View Diagram in Separate Window       Print Part List
